METRIC, Hex-Bolt

M8 x Under 80mm Hex Bolt High Tensile 8.8 Zinc BZP DIN 931

M8 x Under 80mm Hex Bolt High Tensile 8.8 Zinc BZP DIN 931

Regular price £2.81 GBP
Regular price Sale price £2.81 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
No. of Items in Pack
Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M8 x Under and Including 80mm, Hexagon/ Hex Head, Part Plain Shank, Partially Threaded Bolts, High Tensile, Steel Grade 8.8, Zinc Plated, DIN 931.

Fixaball sell all lengths of M8 hex bolts.

Hexagon Head Bolt

Bolt is the term used for a partially threaded fastener (bolt with shoulder/ part plain shank bolt), with a head; designed to be used with a nut and washer.



Orders placed before 2pm are dispatched same day (Mon-Fri) and free shipping is Royal Mail, 2nd Class (2-5 days). Postage upgrades available at checkout.

Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.



M8 Hex Bolts Lengths Available

M8  X  35 HEX BOLT 8.8 DIN 931 BZP
M8  X  40 HEX BOLT 8.8 DIN 931 BZP
M8  X  45 HEX BOLT 8.8 DIN 931 BZP
M8  X  50 HEX BOLT 8.8 DIN 931 BZP
M8  X  55 HEX BOLT 8.8 DIN 931 BZP
M8  X  60 HEX BOLT 8.8 DIN 931 BZP
M8  X  65 HEX BOLT 8.8 DIN 931 BZP
M8  X  70 HEX BOLT 8.8 DIN 931 BZP
M8  X  75 HEX BOLT 8.8 DIN 931 BZP
M8  X  80 HEX BOLT 8.8 DIN 931 BZP



    Metric Coarse (Standard Thread) dimensions are measured in Millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm than a Metric Fine Thead. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.

    Bolt Thread

    The thread length of a shoulder bolt/ plain shank bolt tends to be 2.5 times the diameter of the fastener. Please ask for exact measurements if the shoulder is crucial.

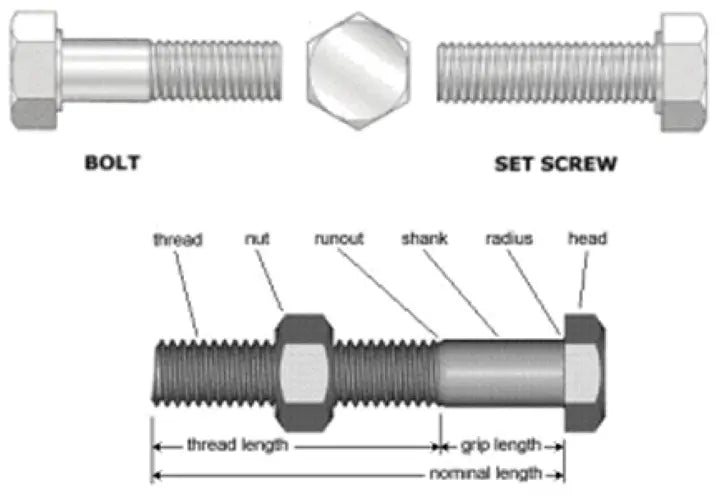

    Bolt vs Screw

    A screw screws into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank)

    Zinc/ BZP Coating

    Zinc coats the fastener to add moisture resistance to the steel to slow down the oxidisation (rusting) of the metal. It does not make the steel waterproof.  Zinc is used for inernal application for an aesthetic shine (chrome type finish) or where there is likely to be moisture on the screw e.g. garage. Self-colour (no coating) is ok to use with a light covering of oil/ grease, when the fastener is not on show or its appearance is not important.

    Odd Quantities

    Choose, 'Number of Items in Pack' closest to what you need and add to cart and either multiply the pack size by the 'Quantity' or choose a different 'Number of Items in Pack' to make up the total amount you need. EXAMPLE 1: for 8 fasteners choose 4, 'Number of Items in Pack' and 2 'Quantity' (add to cart)EXAMPLE 2: for 28 fasteners choose 24, 'Number of Items in Pack' (add to cart) and 4, 'Number of Items in Pack' (add to cart).

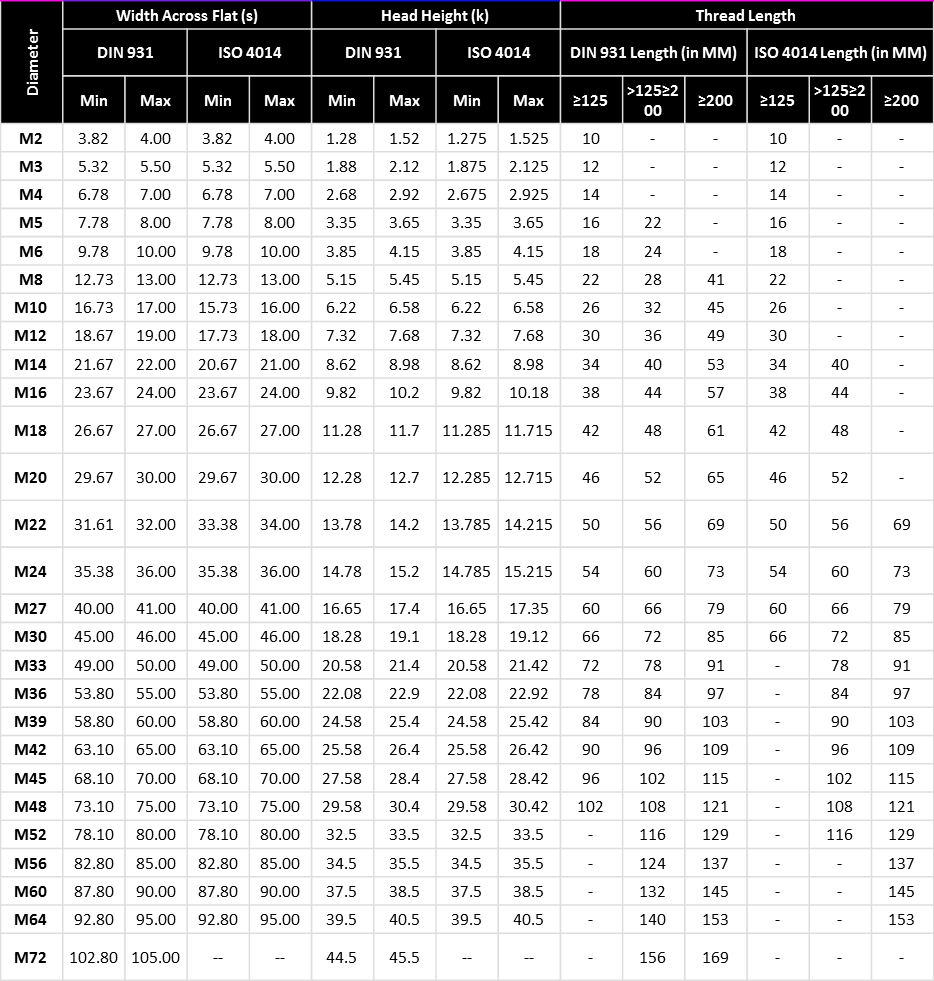

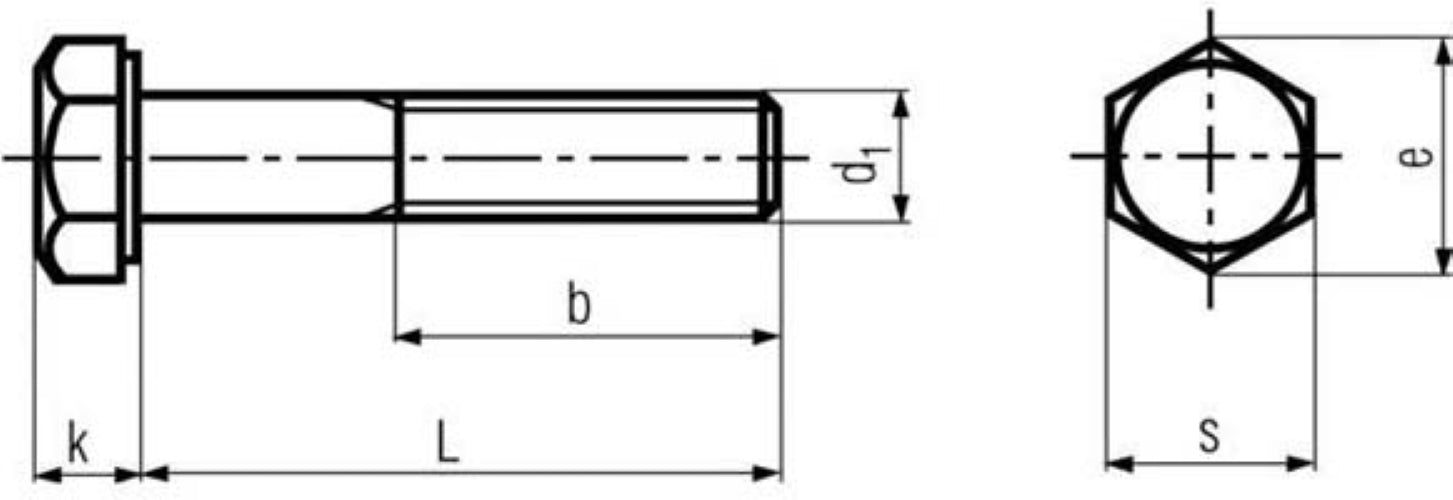

    DIN 931 Hex Bolts Dimensions

    Diameter

    Width Across Flat (s)

    Thread Length

    DIN 931

    ISO 4014

    DIN 931 Length

    (in MM)

    ISO 4014 Length

    (in MM)

    Min

    Max

    Min

    Max

    ≥125

    >125≥200

    ≥200

    ≥125

    >125≥200

    ≥200

    M2

    3.82

    4.00

    3.82

    4.00

    10

    -

    -

    10

    -

    -

    M3

    5.32

    5.50

    5.32

    5.50

    12

    -

    -

    12

    -

    -

    M4

    6.78

    7.00

    6.78

    7.00

    14

    -

    -

    14

    -

    -

    M5

    7.78

    8.00

    7.78

    8.00

    16

    22

    -

    16

    -

    -

    M6

    9.78

    10.00

    9.78

    10.00

    18

    24

    -

    18

    -

    -

    M8

    12.73

    13.00

    12.73

    13.00

    22

    28

    41

    22

    -

    -

    M10

    16.73

    17.00

    15.73

    16.00

    26

    32

    45

    26

    -

    -

    M12

    18.67

    19.00

    17.73

    18.00

    30

    36

    49

    30

    -

    -

    M14

    21.67

    22.00

    20.67

    21.00

    34

    40

    53

    34

    40

    -

    M16

    23.67

    24.00

    23.67

    24.00

    38

    44

    57

    38

    44

    -

    M18

    26.67

    27.00

    26.67

    27.00

    42

    48

    61

    42

    48

    -

    M20

    29.67

    30.00

    29.67

    30.00

    46

    52

    65

    46

    52

    -

    M22

    31.61

    32.00

    33.38

    34.00

    50

    56

    69

    50

    56

    69

    M24

    35.38

    36.00

    35.38

    36.00

    54

    60

    73

    54

    60

    73

    M27

    40.00

    41.00

    40.00

    41.00

    60

    66

    79

    60

    66

    79

    M30

    45.00

    46.00

    45.00

    46.00

    66

    72

    85

    66

    72

    85

    M33

    49.00

    50.00

    49.00

    50.00

    72

    78

    91

    -

    78

    91

    M36

    53.80

    55.00

    53.80

    55.00

    78

    84

    97

    -

    84

    97

    M39

    58.80

    60.00

    58.80

    60.00

    84

    90

    103

    -

    90

    103

    M42

    63.10

    65.00

    63.10

    65.00

    90

    96

    109

    -

    96

    109

    M45

    68.10

    70.00

    68.10

    70.00

    96

    102

    115

    -

    102

    115

    M48

    73.10

    75.00

    73.10

    75.00

    102

    108

    121

    -

    108

    121

    M52

    78.10

    80.00

    78.10

    80.00

    -

    116

    129

    -

    116

    129

    M56

    82.80

    85.00

    82.80

    85.00

    -

    124

    137

    -

    -

    137

    M60

    87.80

    90.00

    87.80

    90.00

    -

    132

    145

    -

    -

    145

    M64

    92.80

    95.00

    92.80

    95.00

    -

    140

    153

    -

    -

    153

    M72

    102.80

    105.00

    --

    --

    -

    156

    169

    -

    -

    -



    Equivalent Standards

    • ISO 4014
    • CSN 21101
    • PN 82101
    • UNI 5737
    • EU 24014
