Projecting Anchor Bolt

M8 Projecting Bolt Nut Stud Shield Masonry Concrete Anchor Zinc

M8 Projecting Bolt Nut Stud Shield Masonry Concrete Anchor Zinc

Regular price £5.00 GBP
Regular price Sale price £5.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No. of Items in Pack
Max Material Thickness

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M8, 8mm Diameter Stud, Projecting Bolt - Shield Anchor - Heavy Duty Fixing - Brick/ Masonry, Rawl/ Wall Bolt, Nut and Stud Type

Fixaball sells lengths of M8/ 8mm Diameter, 'nut type' projecting bolt, masonry anchors.

What is a projecting bolt and where are they most commonly applied?

Projecting Bolt, Masonry Shield Anchor is a heavy duty, builder’s masonry, expansion anchor, for fixing heavy materials and fixtures. They are most commonly used on walls as the pertruding stad helps to hang items in situ.

They can be used in concrete, brick/ block and non-porous stone.

It comprises of a 3 part shield, threaded bar, nut and washer. It is an expansion anchor that pushes outwards at 3 points as the nut is tightened.

Projecting Bolt Applications

  • Projecting bolts are used when material/ fixtures need to be held in place during installation.
  • The projecting threaded bar is used as a locator.
  • Care must be taken not to damage the thread during installation.
  • Shield anchors have an added advantage of being able to function with holes that vary in size/ quality.
  • A shield anchor will only ever be as good as the grade of material that it’s being fixed to.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'no. of items in pack', 'length' and 'quantity', of packs selection from the drop down menus.



Max joining thicknesses available: 15mm, 40mm, 80mm.


    Installation

    Drill the correct sized hole, clear/ clean the hole (brush and air pump), place the anchor in the hole, set the fixture/ material in place, fix by tightening the nut.

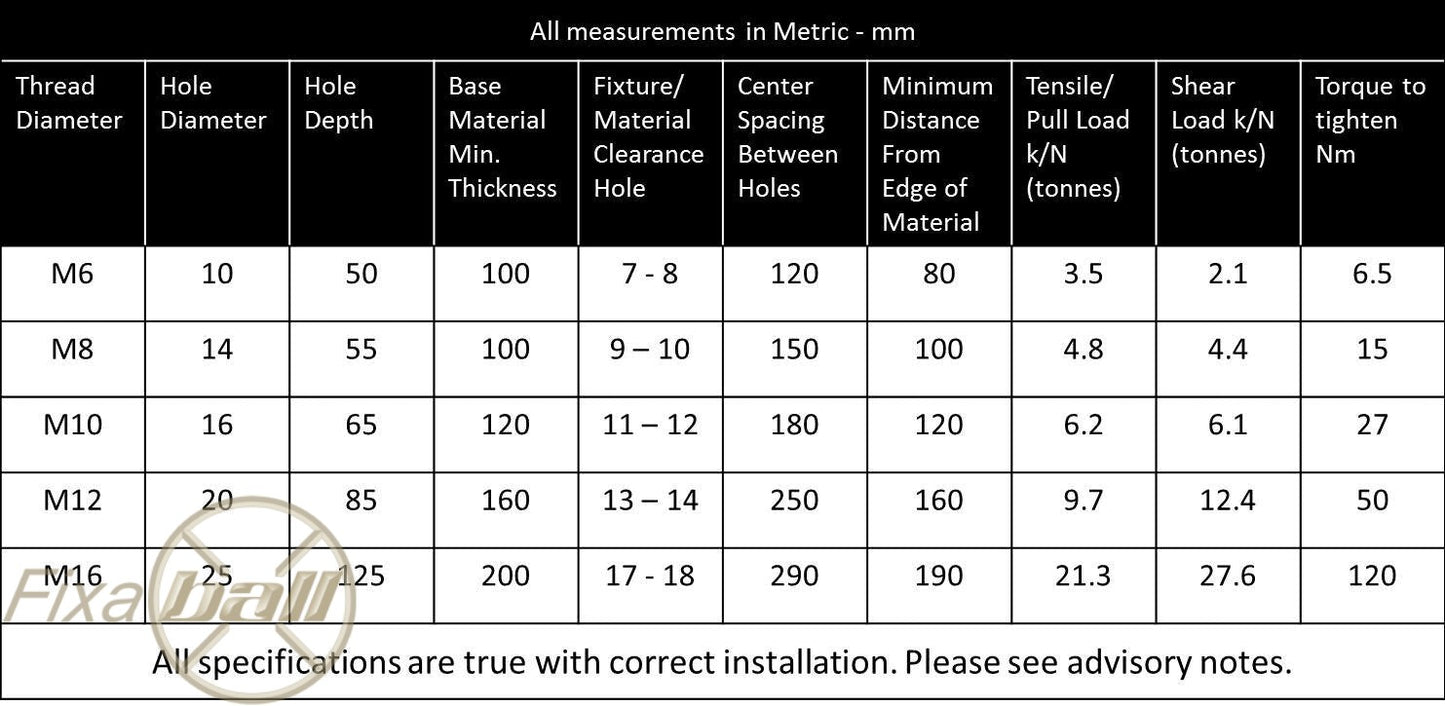

    Table: Shows typical masonry shield anchor properties

    All measurements in Metric - mm

    Thead Diameter

    Hole Diameter

    Hole Depth

    Fixture/ Material Clearance Hole

    Center Spacing Between Holes

    Minimum Distance From Edge of Material

    Tensile/ Pull Load

    k/N (tonnes)

    Shear Load k/N (tonnes)

    Torque to tighten Nm

    M8

    14

    55

    9 – 10

    150

    100

    4.8

    4.4

    15

    All specifications are true with correct installation



    Image is for illustrative purposes only.
