Metric, 1m, Self Colour, High Tensile 8.8, All Threaded Bar/ Studding/ Rod

M6 - M30 x 1000mm lengths (+/- 2mm), METRIC Threaded Bar, Self Colour, High Tensile, Grade 8.8, Studding/ Bar/ Rod/ Chemical Anchor – Full bodied Fixaball sells 1000mm lengths of Threaded Studding/ Bar/ Rod/, Self-Colour, High Tensile,...
£13.57

M6 - M30 x 1000mm lengths (+/- 2mm), METRIC Threaded Bar, Self Colour, High Tensile, Grade 8.8, Studding/ Bar/ Rod/ Chemical Anchor – Full bodied

Fixaball sells 1000mm lengths of Threaded Studding/ Bar/ Rod/, Self-Colour, High Tensile, 8.8 Grade.

Applications of Threaded Bar, Self-Colour, High Tensile (8.8) Studding/ Bar/ Rod

All-Thread Studding can be used in the following applications:

  • Chemical Anchor
  • Can be used in repairs and to secure parts together
  • Manufacturing, automotive and construction industries
  • Electrical and plumbing purposes
  • For Temporary Down Ceiling Purpose
  • AC Fittings with down Ceiling.
  • For special purpose machinery where proper alignment is required.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose the 'No. of 1m Lengths', 'Diameter' and 'Quantity' of lengths of cut stud' from the drop down menus.

These studs are ROLL formed

Threaded Bar, Self-Colour, High Tensile (8.8) Studding Diameters Available:

M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M30.



Threaded Bar, Self-Colour, High Tensile (8.8) Studding/ Bar/ Rod Descriptions

M6 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M8 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M10 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M12 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M14 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M16 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M18 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M20 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M22 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M24 X 1mtr H.T. Allthread Gr.8.8 Self Colour
M30 X 1mtr H.T. Allthread Gr.8.8 Self Colour



Material

Finish

Steel Grade 8.8 (High Tensile)

Self- Colour



Types of Threaded Bar

Full bodied or undercut?

All-thread Studding/ Bar/ Rod/ Chemical Anchor has a thread along the whole length of a cylindrically formed material.

There are two types of studs: full-bodied studs, and undercut studs. Full-bodied studs have a shank equal to the major diameter of the thread. Undercut studs have a shank equal to the pitch diameter of the screw thread. Undercut studs are designed to better distribute axial stresses. In a full-bodied stud the stresses are greater in the threads than in the shank.

Undercut studs (rolled thread) are also stronger because the metal is "rolled" up to the major diameter, not removed/ cut away/ wasted. This preserves the grain of the steel, and in some cases even enhances it. Full bodied studs (cut thread) are weaker because metal is removed to create the thread, disturbing the grain of the steel.

Undercut studs are only required in applications where the stud is exposed to fatigue. Cut threads are entirely suitable for many applications, even when rolled threads might be slightly stronger. Mass-produced fasteners (standard bolts and studs) are usually rolled, but jobbed parts with custom features can be cut on request.

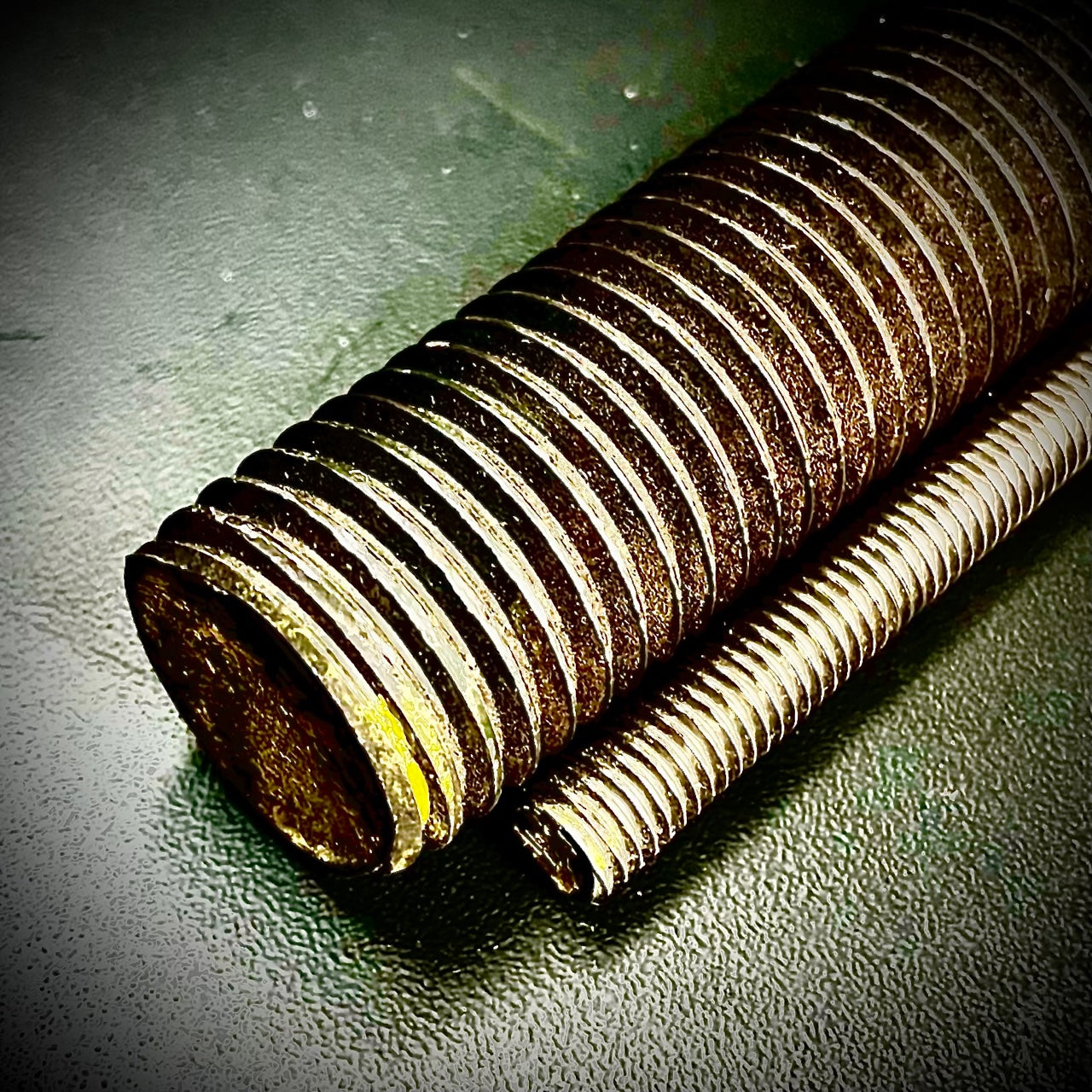

Image is for illustrative purposes only.
