Metric Fine Pitch, Full Hex Nuts, A2/ 304 Stainless Steel, DIN 934.

Metric Fine, Extra and Super Fine Pitch - 1mm Pitch, 1.25mm Pitch, 1.5mm Pitch, Full Hexagonal Nuts, A2/ 304 Stainless Steel, DIN 934. Fixaball sells Metric Fine Pitch - 1.0mm, 1.25mm, 1.5mm, 2.0mm Full Hexagon...
£2.48

Metric Fine, Extra and Super Fine Pitch - 1mm Pitch, 1.25mm Pitch, 1.5mm Pitch, Full Hexagonal Nuts, A2/ 304 Stainless Steel, DIN 934.

Fixaball sells Metric Fine Pitch - 1.0mm, 1.25mm, 1.5mm, 2.0mm Full Hexagon Nuts, A2/ 304 Stainless Steel, DIN 934 at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

Please make your 'no. of items in pack' and 'quantity' of packs, selection from the drop down menus.

METRIC FINE< EXTRA FINE AND SUPER FINE Full Hexagon Nut Descriptions

M8 X 0.75 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M8 X 1.0 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M10 X 1.0 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M10 X 1.25 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M12 X 1.0 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M12 X 1.25 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M12 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M14 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M16 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M18 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M20 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M20 X 2.0 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M22 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M24 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M24 X 2.0 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M27 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M27 X 2.0 FINE PITCH HEXAGON FULL NUT DIN 934 A2-70 STAINLESS STEEL
M30 X 1.5 FINE PITCH HEXAGON FULL NUT DIN 934 A2 STAINLESS STEEL



Nuts are almost always used opposite a mating bolt to fasten a stack of parts together. The two partners are kept together by a combination of their threads' friction, a slight stretch of the bolt, and compression of the parts.

Nuts are most commonly hexagonal in shape. It is important to use the correct sized spanners to avoid, ‘rounding off,’ the nut. Otherwise, if using an adjustable spanner you must ensure it is full tightened over the flat faces. Other specialized shapes exist for certain needs, such as wingnuts for finger adjustment and captive nuts (eg cage nuts) for hard to reach areas.

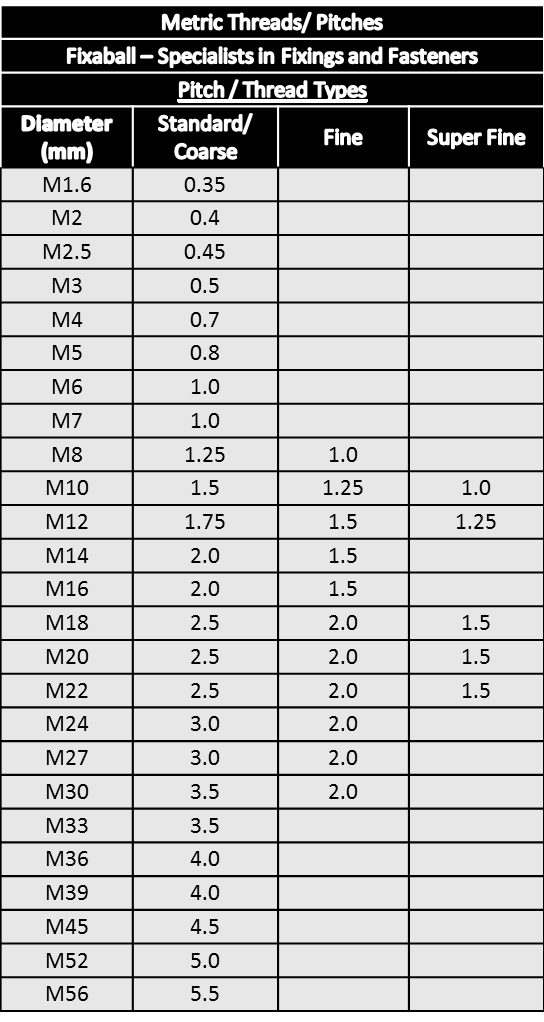

Metric Threads/ Pitches

Fixaball – Specialists in Fixings and Fasteners

Pitch / Thread Types

Diameter

(mm)

Standard/ Coarse

Fine

Super Fine

M1.6

0.35



M2

0.4



M2.5

0.45



M3

0.5



M4

0.7



M5

0.8



M6

1.0



M7

1.0



M8

1.25

1.0



M10

1.5

1.25

1.0

M12

1.75

1.5

1.25

M14

2.0

1.5



M16

2.0

1.5



M18

2.5

2.0

1.5

M20

2.5

2.0

1.5

M22

2.5

2.0

1.5

M24

3.0

2.0



M27

3.0

2.0



M30

3.5

2.0



M33

3.5



M36

4.0



M39

4.0



M45

4.5



M52

5.0



M56

5.5



UNITS OF MEASUREMENT FOR THREAD TYPES

Metric Coarse and Metric Fine are in Millimetre (mm) units and were developed to simplify the imperial systems. Coarse is standard and fine is either 0.75 P, 1 P, 1.25 P, 1.5 P, depending on the shank diameter. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.

 We also have a large variety of Metric, Fine Pitch, Nyloc Nuts as well.

We can quote on A4 Stainless Steel on request.

Image is for illustrative purposes only.
