Metric, Fine Pitch, Hex Nyloc Nuts, Steel, Zinc, DIN 985, T-Type.

M10, M12, M14, M16, M18, M20, M24, Fine Pitch, Nyloc Nuts, Zinc Plated, BZP, T-Type, (Thin) DIN 985. ISO 7040. Fixaball sells all sizes of Fine Pitch, Zinc Plated, Nyloc Nuts. Nyloc Nuts...
£2.20

M10, M12, M14, M16, M18, M20, M24, Fine Pitch, Nyloc Nuts, Zinc Plated, BZP, T-Type, (Thin) DIN 985. ISO 7040.

Fixaball sells all sizes of Fine Pitch, Zinc Plated, Nyloc Nuts.

Nyloc Nuts

A nyloc nut is a nut that locks in a sense or is self-sticking and less likely to loosen due to vibrations or stress. This is achieved through the addition of the nylon insert that has a diameter slightly smaller than the nuts’ thread. A fastener screwed into the nut cuts a thread into the plastic, therefore increasing the compression force/ friction around it (tighter join). A nyloc nut is effective up to 121°C.

These are not standard (normal) nuts, they have a fine thread for applications prone to vibration and are typically used on machines and automobiles.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your, 'No. of Items in Pack', 'Size', and pack 'Quantity' selection from the drop down menus.

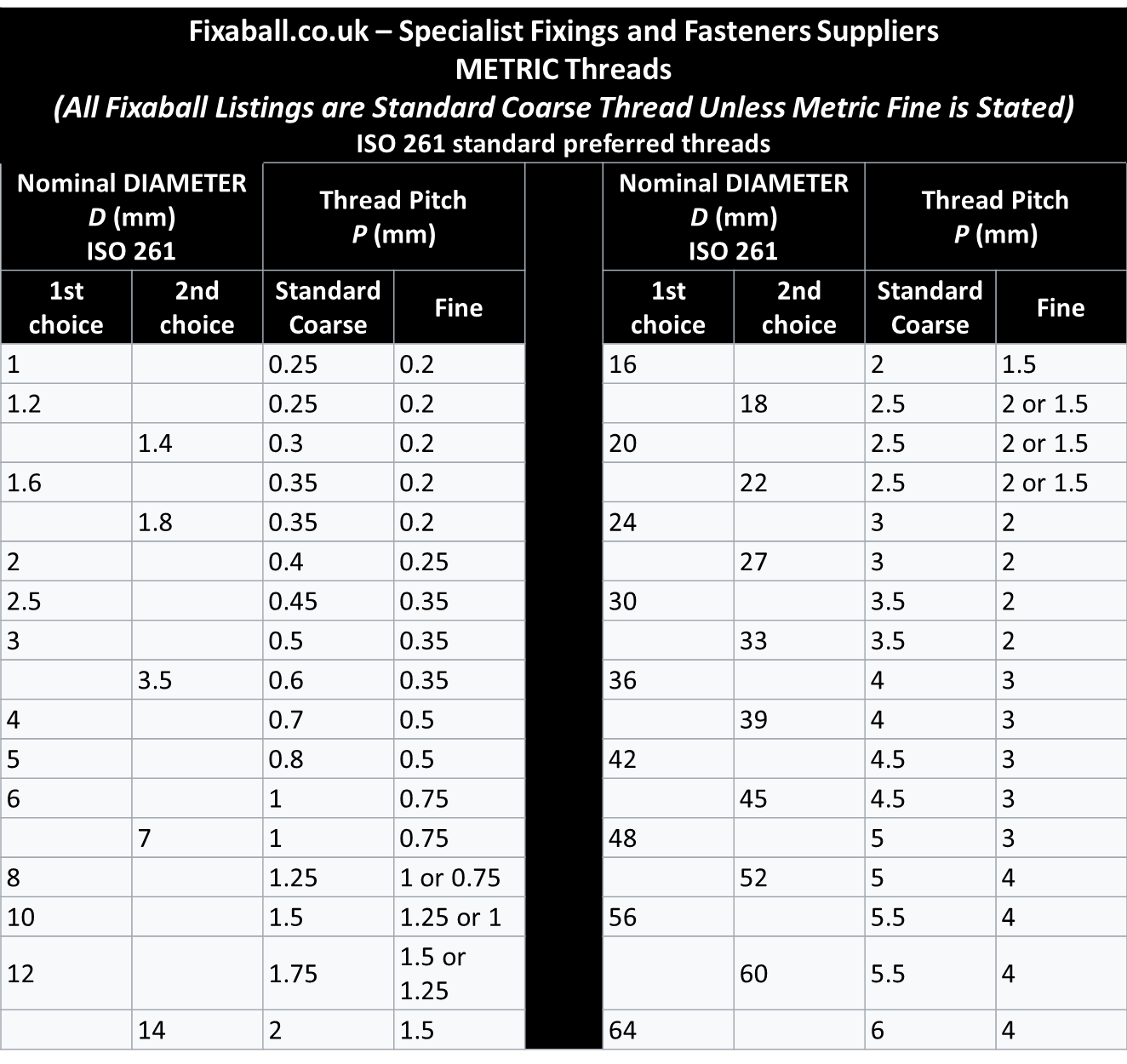

Nut Gauge and Standard, Fine Pitch Threaded Sizes

M10 x 1mm Pitch

M10 x 1.25mm Pitch

M12 x 1.25mm Pitch

M12 x 1.5mm Pitch

M14 x 1.5mm Pitch

M16 x 1.5mm Pitch

M18 x 1.5mm Pitch

M20 x 1.5mm Ptich

M24 x 1.5mm Pitch

M24 x 2.0mm Pitch



Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP - M10 x 1.00P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP - M10 x 1.25P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP - M12 x 1.25P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP - M12 x 1.50P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP – M14 x 1.50P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP - M16 x 1.50P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP – M18 x 1.50P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP - M20 x 1.50P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP - M24 x 1.50P
Class 6 Fine Pitch Nylon Insert Nuts T Type DIN 985 BZP - M24 x 2.00P

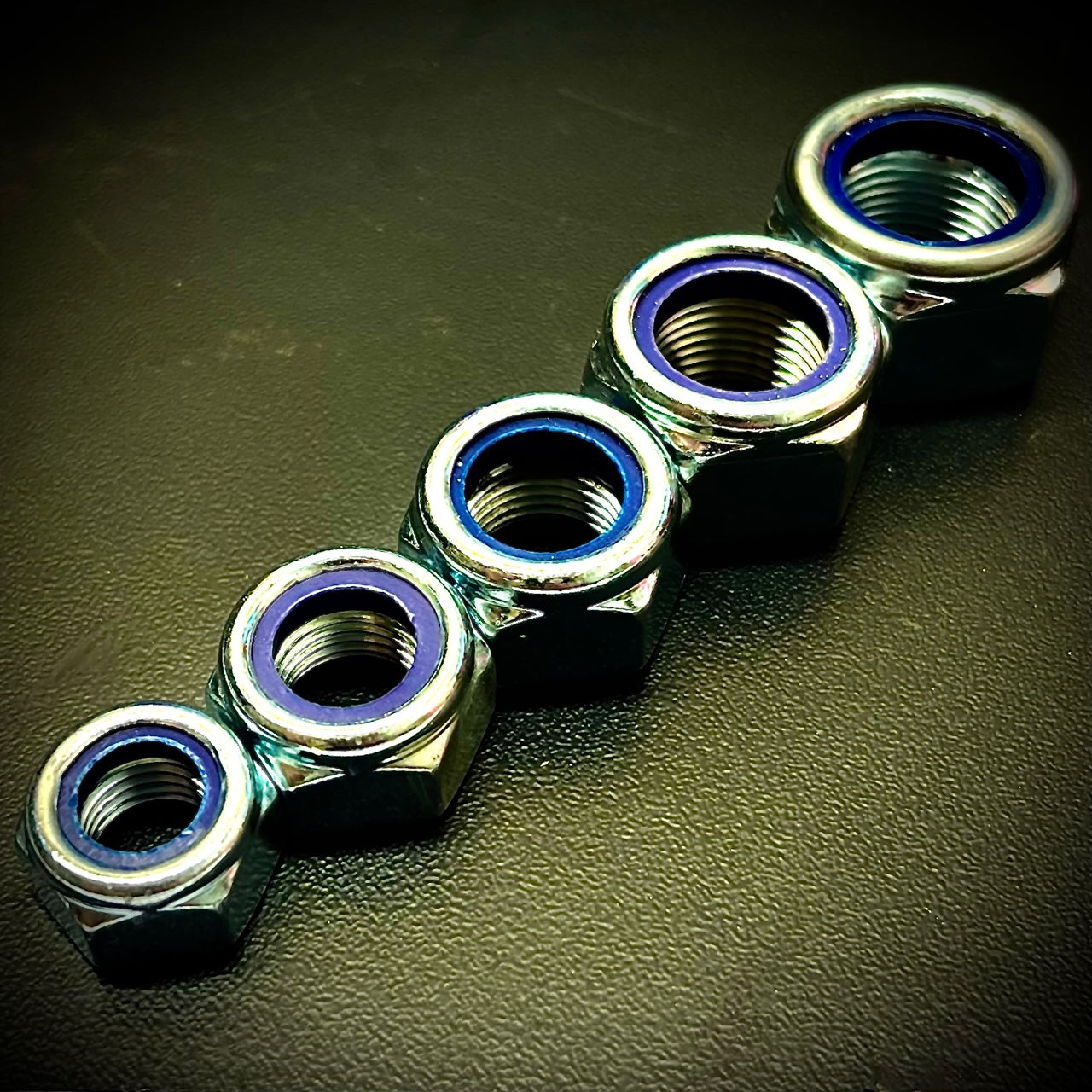

Image is for illustrative purposes only.
