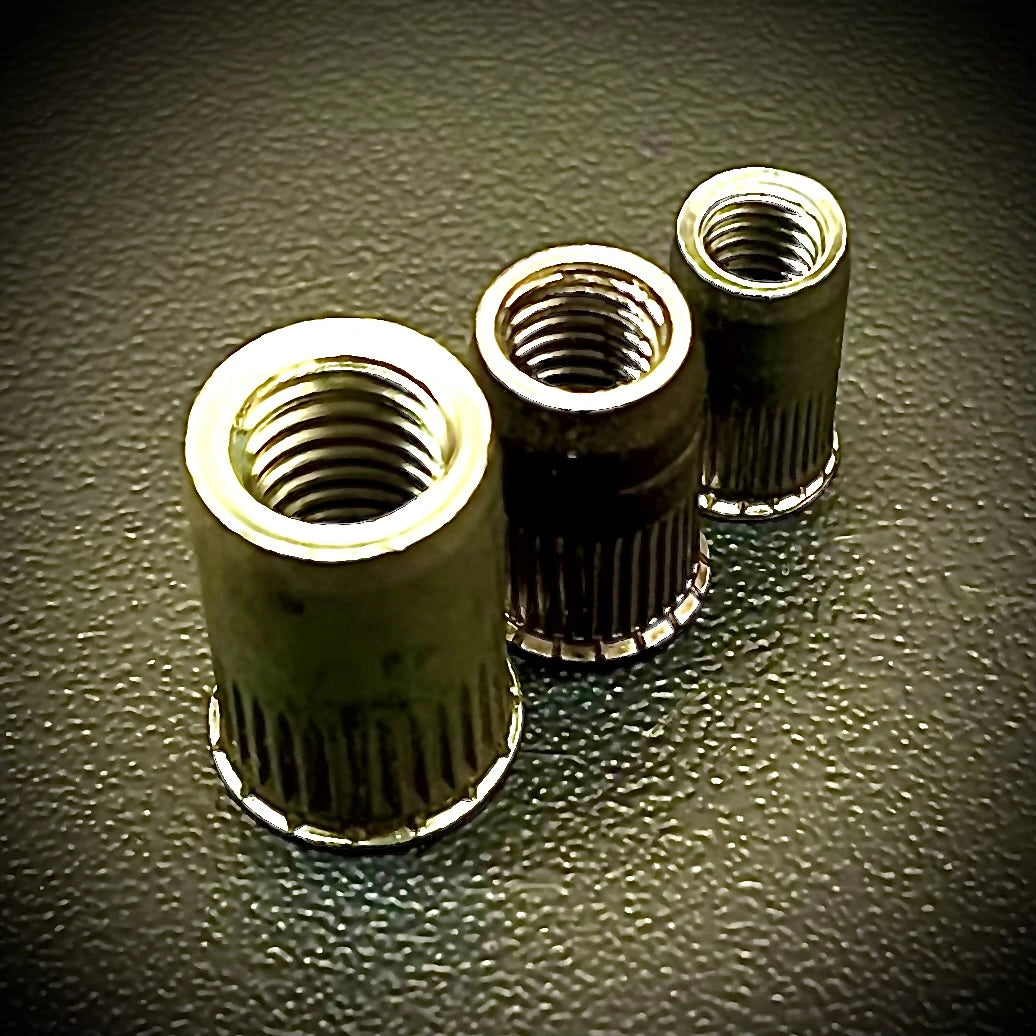

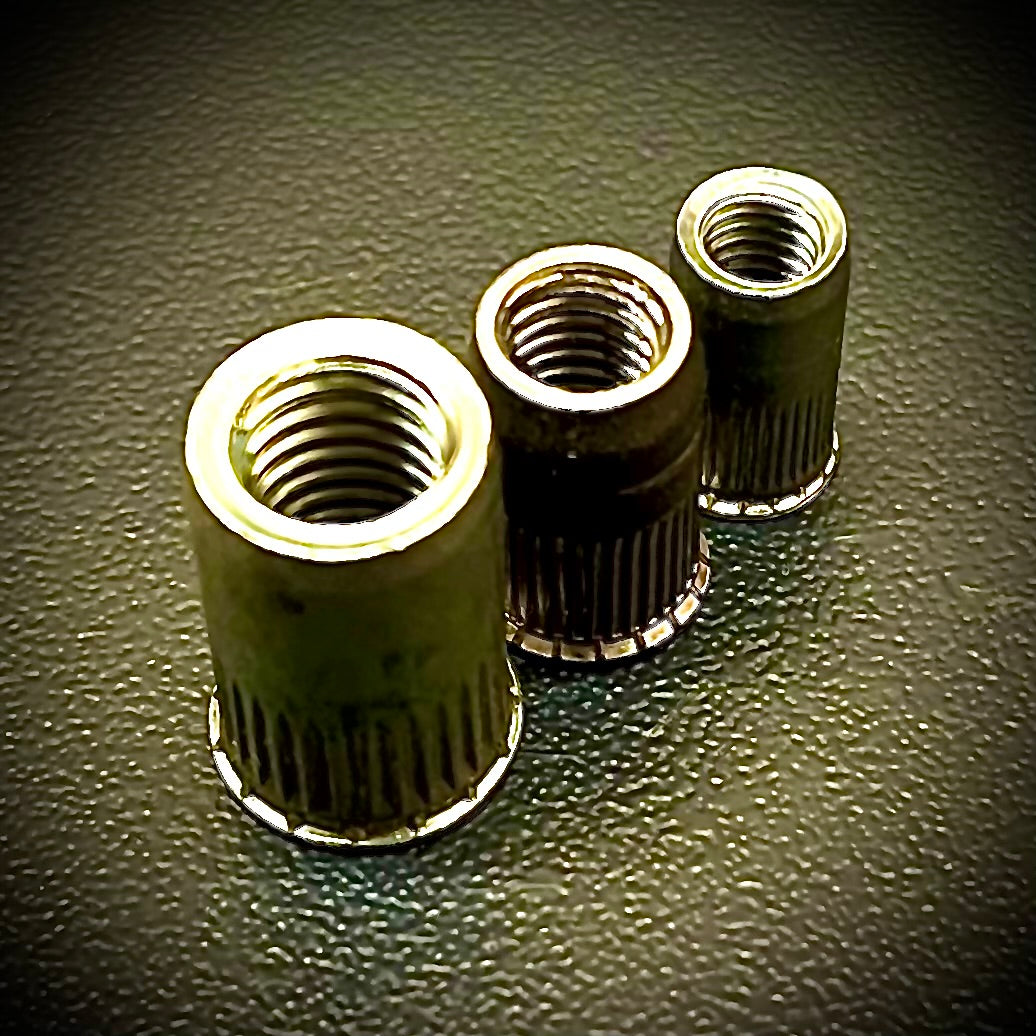

Reduced Head, Rivet Nut, Steel, Zinc.

METRIC Reduced Head, Rivet Nut, Steel, Zinc plated Fixaball sells all M3, M4, M5, M6, M8, M10, M12 Reduced Head Rivet Nuts at the best internet prices, with free delivery. Orders placed before...
£2.33

METRIC Reduced Head, Rivet Nut, Steel, Zinc plated

Fixaball sells all M3, M4, M5, M6, M8, M10, M12 Reduced Head Rivet Nuts at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose your size and pack quantity from the drop down menus.

Reduced Head, Rivet Nut, Steel, Zinc are available in the following sizes:

M3X11.5 (1.5-3.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M4X13.0 (2.0-4.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M5X13.0 (2.0-4.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M6X16.0 (2.5-5.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M8X18.5 (3.0-5.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M10X22.0 (3.5-6.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M12X27.5 (4.0-6.5) Steel Reduced Head Round Knurled Body JRP Rivet Nuts



Rivet Nuts

They are fitted using a specialised tool called a Threaded Rivet Insert Tool - the mandrel on the tool is threaded into the rivet. As you squeeze the handles of the tool the mandrel is pulled towards you and deforms on the back of the rivet, on the back of the sheet material creating a bulge that clamps the sheet between the head and the deformation. Please see diagram example of a flanged riv-nut.

Head - Reduced

Reduced Head Rivet nuts provide a strong captivated thread in thin panels and in applications where only one side of the panel is accessible such as box or tube section. Rivet nuts have an advantage over other captivated fasteners because they can be installed on site or used for repair work to replace a previously installed fastener that has failed. The advantage of installation from one side of the application means that access to the back of the panel is never required.

Body  - Knurled/ Serrated Under Head

The Riv-nut sizes have serrations/ grooves called knurls on the body to help give grip and prevent rotation during fabrication.

Thread – Standard Metric Coarse

Material and Finish

Large Diameter Riv-Nuts Mild Carbon Steel Cr3 - Zinc Plated

Important dimensions and installation sizes

Fixaball – Specialist Fixings and Fasteners Suppliers

Reduced Head Rivet Nuts, Steel (zinc plated)

All dimensions in Metric – Millimetres - mm

Thread size and Pitch

Body Diameter

Total Length

Drill Hole Size

Material Grip Range

M4 x 0.7

5.9

9.5

6

0.3 To 3.0mm

M5 x 0.8

6.9

12

7

0.5 To 3.0mm

M6 x 1

8.9

14.5

8.5 - 9

0.5 To 5.0mm

M8 x 1.25

10.9

16.5

10.5 - 11

0.5 To 5.0mm

M10 x 1.5

12.9

17

12.5 - 13

0.5 To 5.5mm

Image is for illustrative purposes only.
