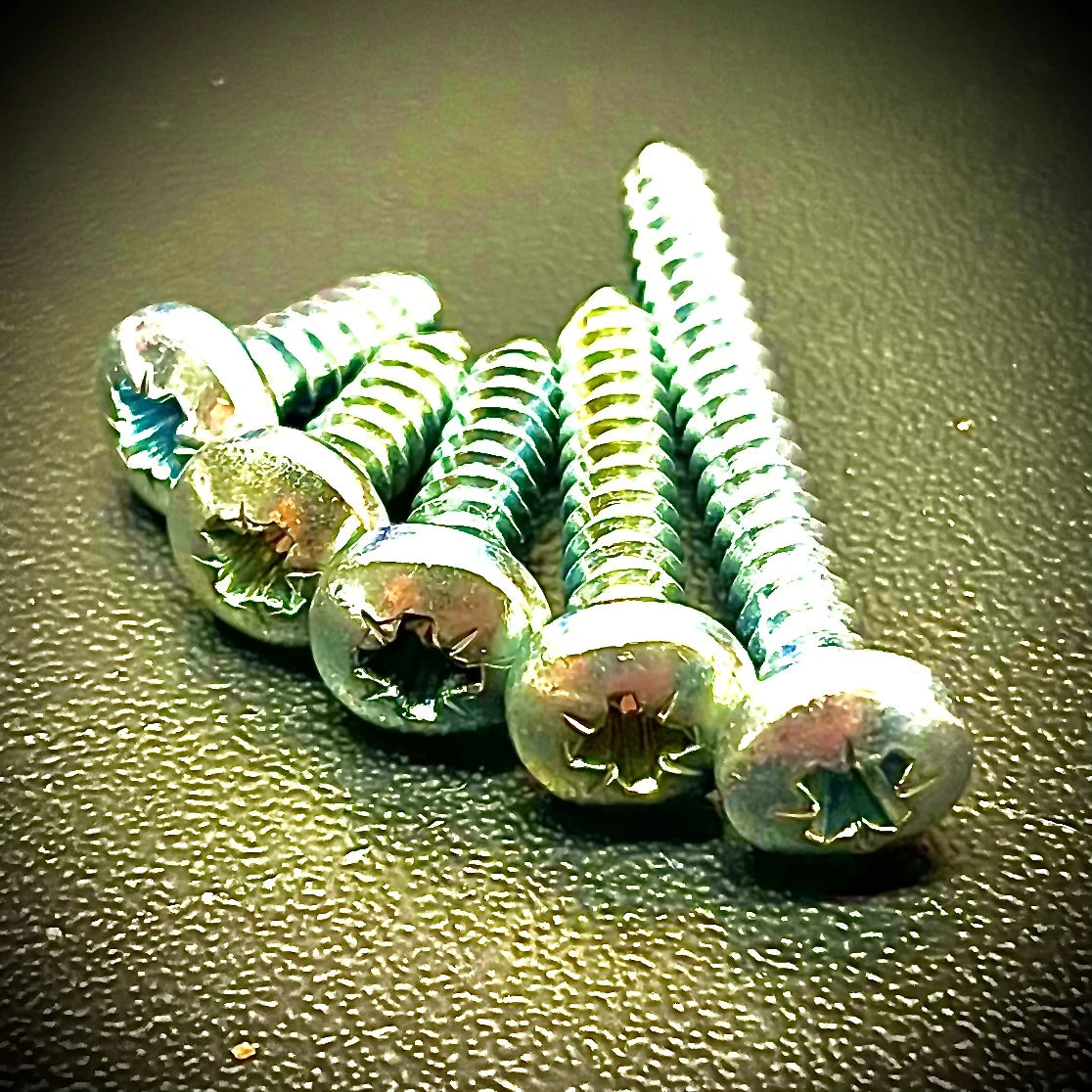

No. 10/ 4.8mm Pozi, Pan, Self Tapping Screws, AB Point, Zinc, Cr3, BZP.
No. 10/ 4.8mm Self Tapping Screws, Pozi, Pan Head, AB Point, Zinc Plated, Cr3, BZP.
Fixaball sells No. 10/ 4.8mm, BZP, Self Tapping Screws, Pozi, Pan Head, AB Point, at the best internet prices, with free delivery.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please choose your 'No. of Items in Pack', 'Length' and 'Quantity' of packs from the drop down menus.
No. 10/ 4.8mm, BZP, Self Tapping Screws, Pozi, Pan Head, AB Point lengths available:
| 4.8 X 9.5 AB Pozi Pan Self Tap Screw Zinc & Clear (3/8 X 10) |
| 4.8 X 13 AB Pozi Pan Self Tap Screw Zinc & Clear (1/2 X 10) |
| 4.8 X 16 AB Pozi Pan Self Tap Screw Zinc & Clear (5/8 X 10) |
| 4.8 X 19 AB Pozi Pan Self Tap Screw Zinc & Clear (3/4 X 10) |
| 4.8 X 25 AB Pozi Pan Self Tap Screw Zinc & Clear (1 X 10) |
| 4.8 X 32 AB Pozi Pan Self Tap Screw Zinc & Clear (1.1/4 X 10) |
| 4.8 X 38 AB Pozi Pan Self Tap Screw Zinc & Clear (1.1/2 X 10) |
| 4.8 X 45 AB Pozi Pan Self Tap Screw Zinc & Clear (1.3/4 X 10 ) |
| 4.8 X 50 AB Pozi Pan Self Tap Screw Zinc & Clear (2 X 10) |
Self-Tapping Screws

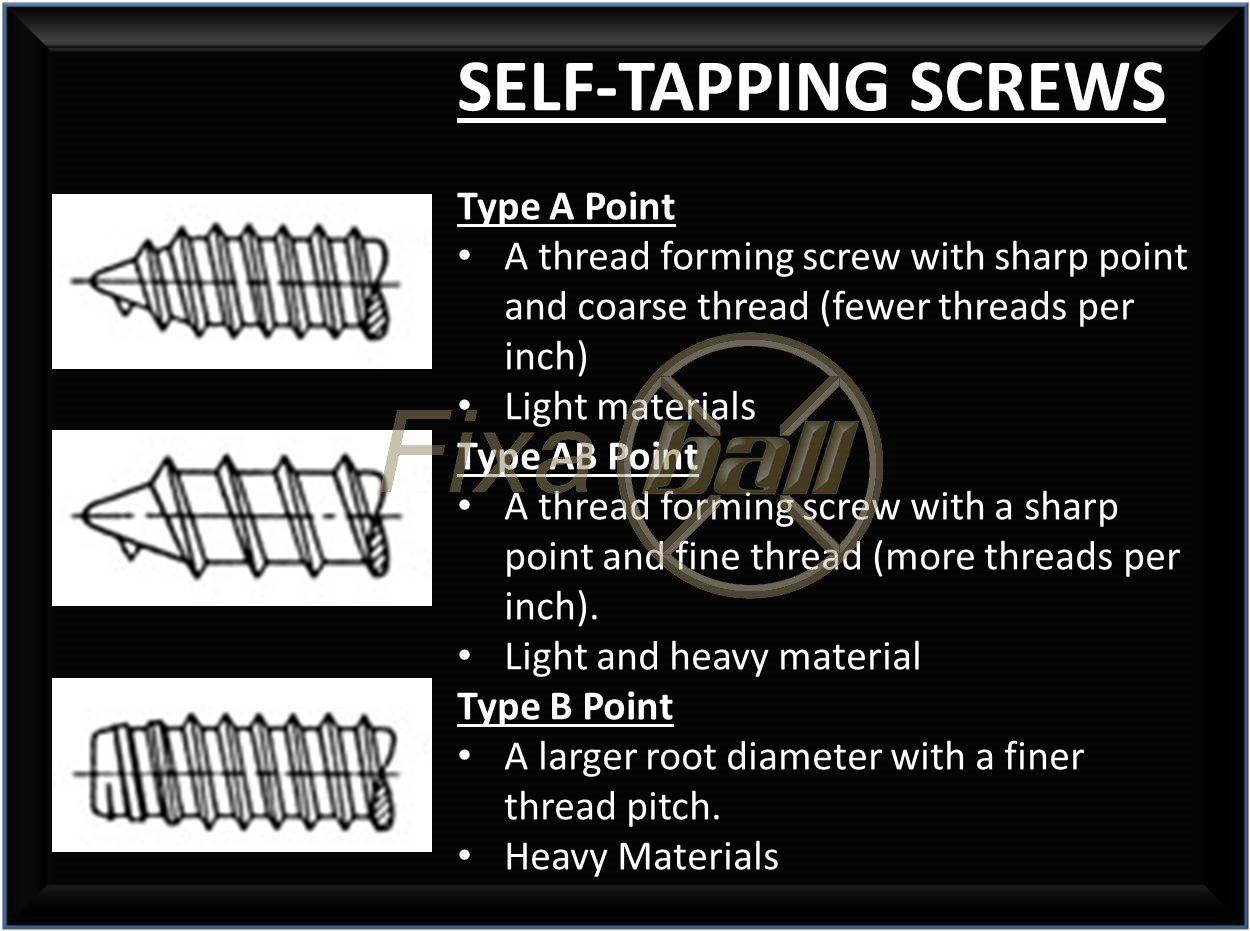

A self-tapping screw is a screw that can tap its own hole as it is driven into the material. For hard substrates such as metal or hard plastics, the self-tapping ability is often created by cutting a gap in the continuity of the thread on the screw, generating a flute and cutting edge similar to those on a tap. Thus, whereas a regular machine screw cannot tap its own hole in a metal substrate, a self-tapping one can (within reasonable limits of substrate hardness and depth)
Self-Tapping Screw Head
Pozidrive (pozi), Pan Heads – Sits proud of the material
Important Dimensions (sizes)
No.6 = screw dia. 3.5mm, head dia. 8m, head height 2.1mm.
No.8 = screw dia. 4.2mm, head dia. 9.8mm, head height 2.3mm.
No.10 = screw dia. 4.8mm, head dia. 11.2mm, head height 3mm.
No.12 = screw dia. 5.5mm, head dia. 12.8mm, head height 3mm.
All screw lengths are measured from the underside of the head.

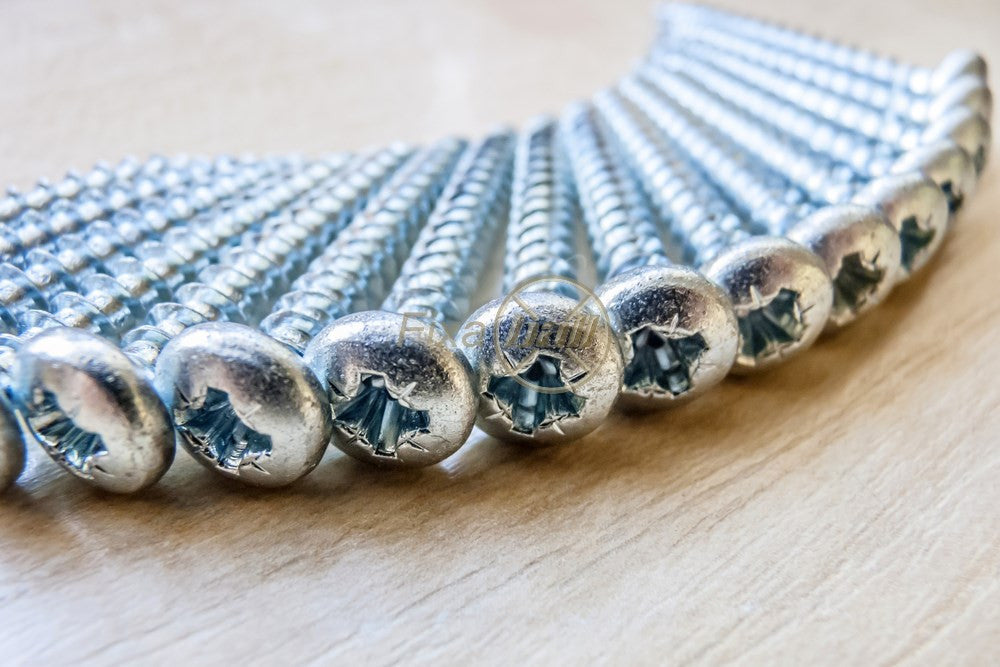

Image is for illustrative purposes only.
