No. 10, Pozi, Flange, Self Tapping Screws, AB Point, Zinc, BZP.

No.10, Self Tapping Screws, Pozi, Flange Head, AB Point, Zinc Plated, BS 4174 Fixaball sells No. 10, BZP/ Zinc, Pozi Recessed, Flange, Self-Tapping Screws. Pozi Recessed, Flange, Self-Tapping Screw Description Sits proud of material...
£2.57

No.10, Self Tapping Screws, Pozi, Flange Head, AB Point, Zinc Plated, BS 4174

Fixaball sells No. 10, BZP/ ZincPozi Recessed, Flange, Self-Tapping Screws.


Pozi Recessed, Flange, Self-Tapping Screw Description

Sits proud of material and the flange acts as a washer to spread the load

Self-Tappers

A self-tapping screw is a screw that can tap its own hole as it is driven into the material. For hard substrates such as metal or hard plastics, the self-tapping ability is often created by cutting a gap in the continuity of the thread on the screw, generating a flute and cutting edge similar to those on a tap. Thus, whereas a regular machine screw cannot tap its own hole in a metal substrate, a self-tapping one can (within reasonable limits of substrate hardness and depth).



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose your, 'No. of Items in Pack', 'Length', and ,'Quantity' of packs from the drop down menus.

No. 10 (4.8mm) Pozi Recessed, Flange, Self-Tapping Screw Lengths Available

Pozi Recessed Flange AB Self Tapper BS4174 BZP CR3 - 10 x 3/8 (4.1mm x 9.5mm)
Pozi Recessed Flange AB Self Tapper BS4174 BZP CR3 - 10 x ½ (4.1mm x 13mm)
Pozi Recessed Flange AB Self Tapper BS4174 BZP CR3 - 10 x 5/8 (4.1mm x 15.9mm)
Pozi Recessed Flange AB Self Tapper BS4174 BZP CR3 - 10 x ¾ (4.1mm x 19mm)
Pozi Recessed Flange AB Self Tapper BS4174 BZP CR3 - 10 x 1 (4.1mm x 25.4mm)



Pozi Recessed, Flange, Self-Tapping Screw Important Dimensions (sizes)

No.6 = screw dia. 3.5mm, head dia. 8m, head height 2.1mm.

No.8 = screw dia. 4.2mm, head dia. 9.8mm, head height 2.3mm.

No.10 = screw dia. 4.8mm, head dia. 11.2mm, head height 3mm.

No.12 = screw dia. 5.5mm, head dia. 12.8mm, head height 3mm.

All screw lengths are measured from the underside of the head.

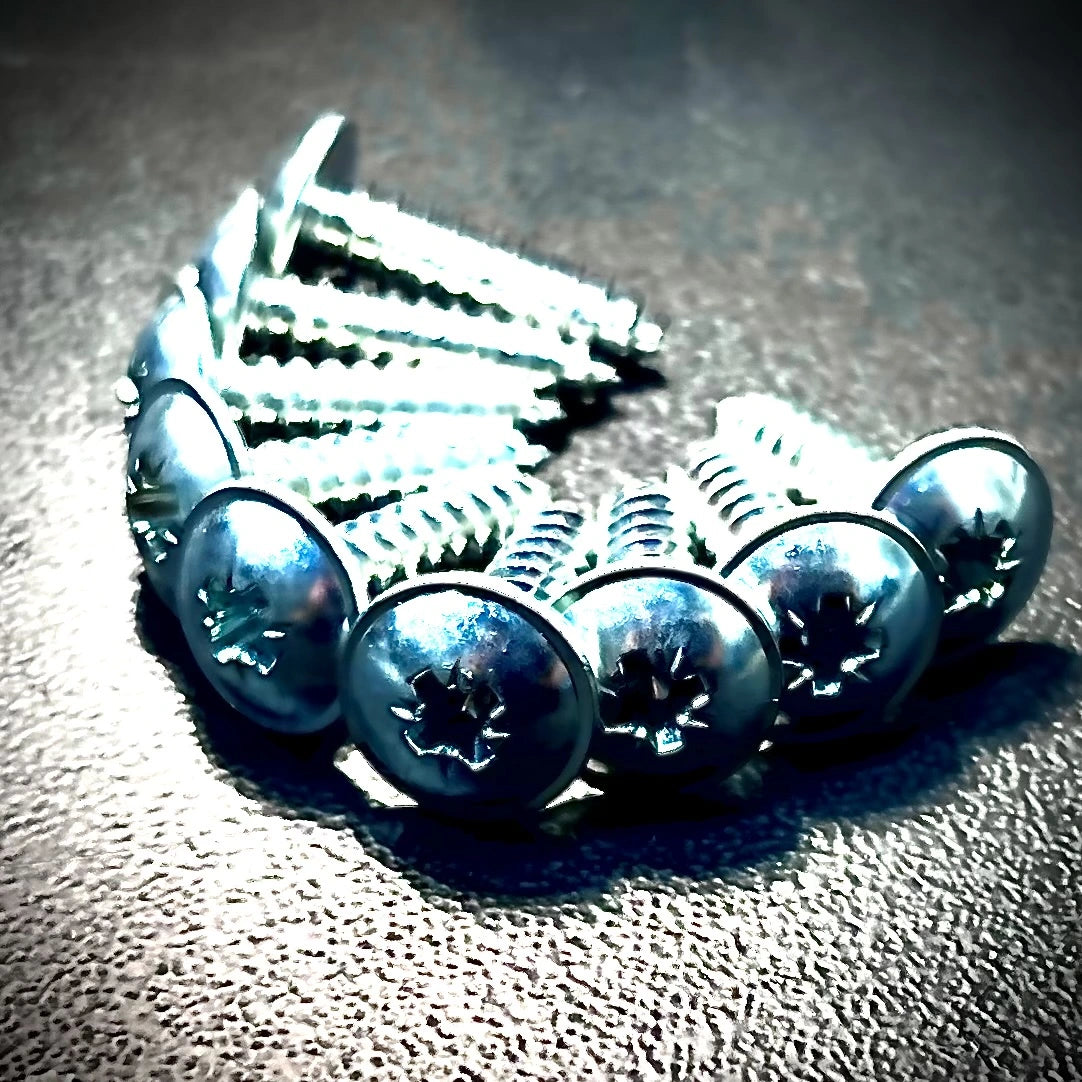

Image is for illustrative purposes only.
