No. 8/ 4.2mm Pozi, Countersunk, Self Tapping Screws, AB point, Zinc, BZP.
No. 8/ 4.2mm, Self-Tapping Screws, Pozidrive, Countersunk Head, Zinc Plated, AB point, DIN 7982/C
Fixaball sells No. 8/ 4.2mm, BZP, Self Tapping Screws, Pozidrive, Countersunk Head, AB Point, at the best internet prices, with free delivery.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please choose your 'No. of Items in Pack', 'Length' and 'Quantity' of packs from the drop down menus.
No. 8/ 4.2mm, BZP, Self Tapping Screws, Pozi, Countersunk Head, AB Point lengths available:
| 4.2 X 9.5 AB Pozi Csk Self Tap Screw Zinc & Clear (3/8 X 8) | DIN 7982 |
| 4.2 X 13 AB Pozi Csk Self Tap Screw Zinc & Clear (1/2 X 8) | DIN 7982 |
| 4.2 X 16 AB Pozi Csk Self Tap Screw Zinc & Clear (5/8 X 8) | DIN 7982 |
| 4.2 X 19 AB Pozi Csk Self Tap Screw Zinc & Clear (3/4 X 8) | DIN 7982 |
| 4.2 X 25 AB Pozi Csk Self Tap Screw Zinc & Clear (1 X 8) | DIN 7982 |
| 4.2 X 45 AB Pozi Csk Self Tap Screw Zinc & Clear (1.3/4 X 8) | DIN 7982 |
| 4.2 X 50 AB Pozi Csk Self Tap Screw Zinc & Clear (2 X 8) | DIN 7982 |
Self-Tapping Screws

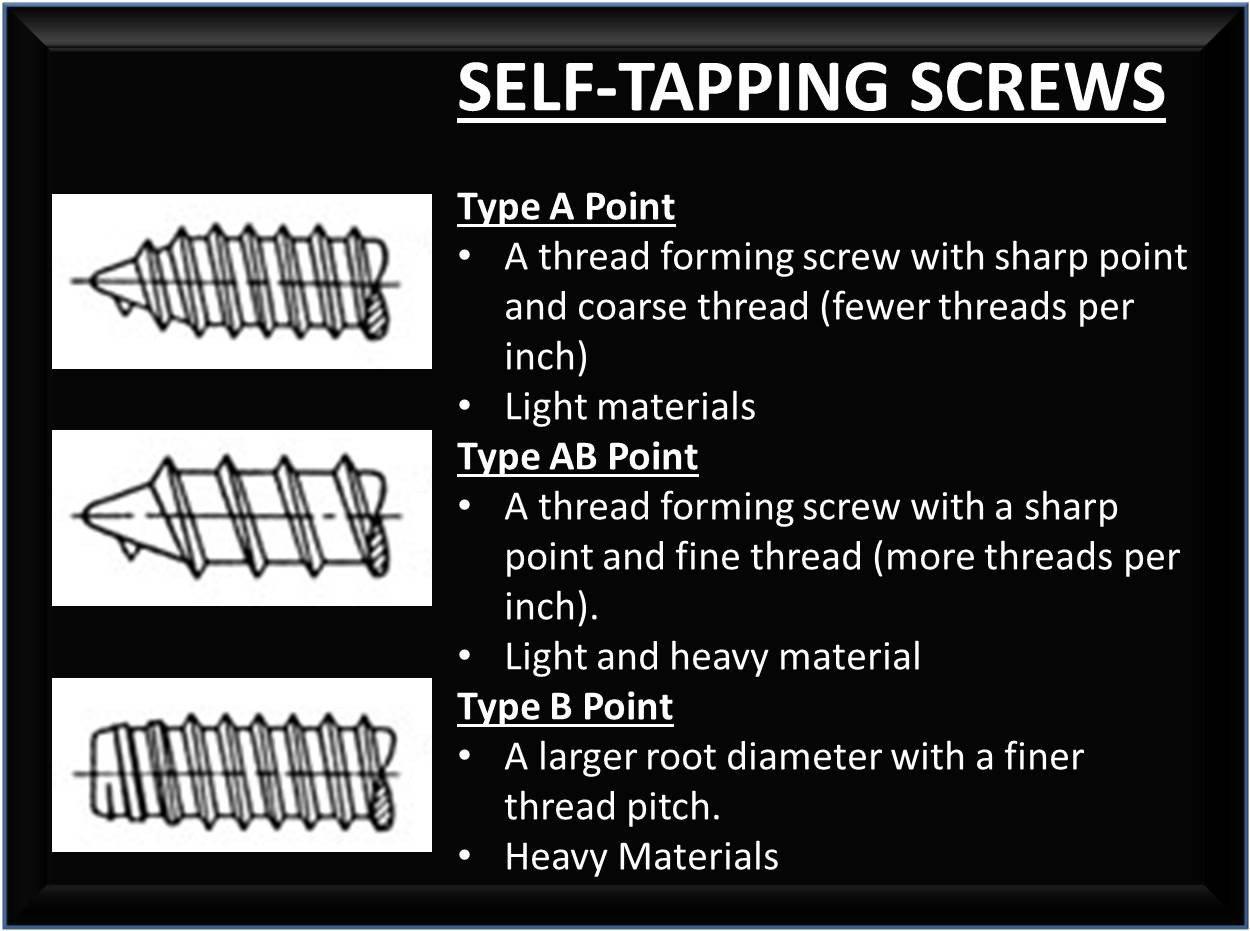

A self-tapping screw is a screw that can tap its own hole as it is driven into the material. For hard substrates such as metal or hard plastics, the self-tapping ability is often created by cutting a gap in the continuity of the thread on the screw, generating a flute and cutting edge similar to those on a tap. Thus, whereas a regular machine screw cannot tap its own hole in a metal substrate, a self-tapping one can (within reasonable limits of substrate hardness and depth)
Self-Tapping Screw Head type
Pozidrive (pozi), Countersunk (csk) Heads – Sits flush with the material surface
Important Dimensions (sizes) of DIN 7982 Self Tapping Screws
No.6 = screw dia. 3.5mm, head dia. 8m, head height 2.1mm.
No.8 = screw dia. 4.2mm, head dia. 9.8mm, head height 2.3mm.
No.10 = screw dia. 4.8mm, head dia. 11.2mm, head height 3mm.
No.12 = screw dia. 5.5mm, head dia. 12.8mm, head height 3mm.
All screw lengths are measured from the underside of the head.

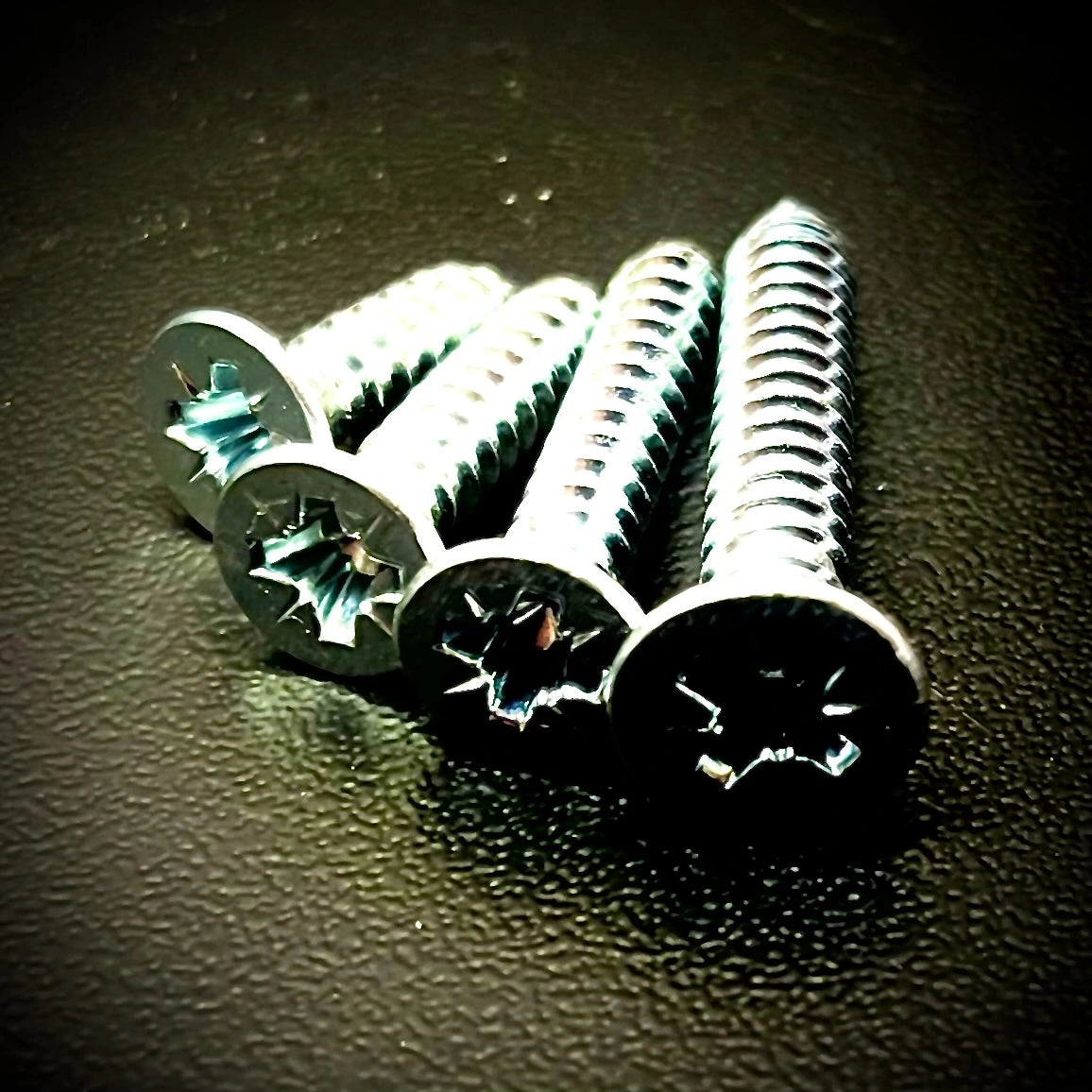

Image is for illustrative purposes only.
