UNF- Cap Head

UNF 10/32" Socket Cap Screw High Tensile 12.9 Self Colour DIN912

UNF 10/32" Socket Cap Screw High Tensile 12.9 Self Colour DIN912

Regular price £2.87 GBP
Regular price Sale price £2.87 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No. of Items in Pack
Length (inches)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

UNF 10 (32 T.P.I.), Fine Pitch, High Tensile (12.9), Self Colour DIN 912. Allen (hex) Socket, Cap Head, Allen Screw/ Bolt, ISO 4762, BS 2470, Series 1960

Fixaball sells all lengths of 10/ 32, UNF, Allen (hex) Socket, Cap Head, Allen Screw/ Bolt.

Allen/ Hexagon Socket, Cap Head Screw/ Bolts

The, ‘Socket Cap Screw/ Allen Bolt,’ term is used to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose your, 'No. of Items in Pack', 'Length', and 'Quantity', of packs selection from the drop down menus.



UNF 10 (32 T.P.I.) Allen Socket, Cap Head Screw/ Bolt lengths at Fixaball:

(FT - Fully ThreadedPT - Partially Threaded)

#10-32x1/4",(FT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x3/8",(FT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x1/2",(FT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x5/8",(FT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x11/16",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x7/8",(FT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x1 1/8",(FT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x1 1/4",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x1 3/8",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x1 1/2",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x1 3/4",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x2",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x2 1/4",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x2 3/8",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x2 1/2",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x2 3/4",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x3",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x3 1/4",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x3 1/2",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x4",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960
#10-32x4 1/2",(PT) SOCKET HEAD CAP SCREWS UNF S/COLOUR 1936-1960



High Tensile – 12.9 Grade.

Available Materials: Black/ Self Colour

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel

Self-Colour (black)

Low, without further surface treatment

-          No exposure to moisture

-          Often Greased/ Oilied



Fixaball – Specialist Fixings and Fasteners

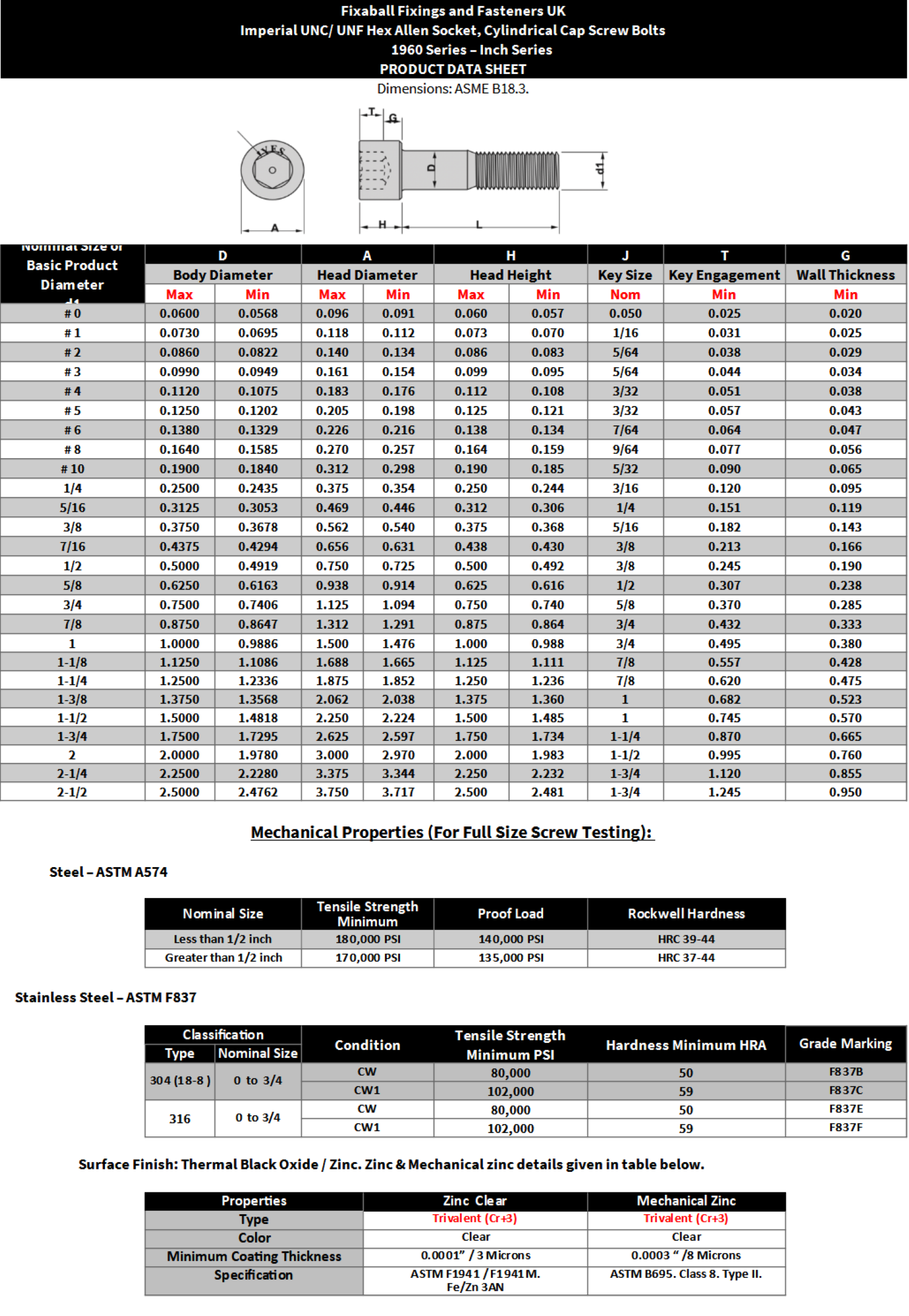

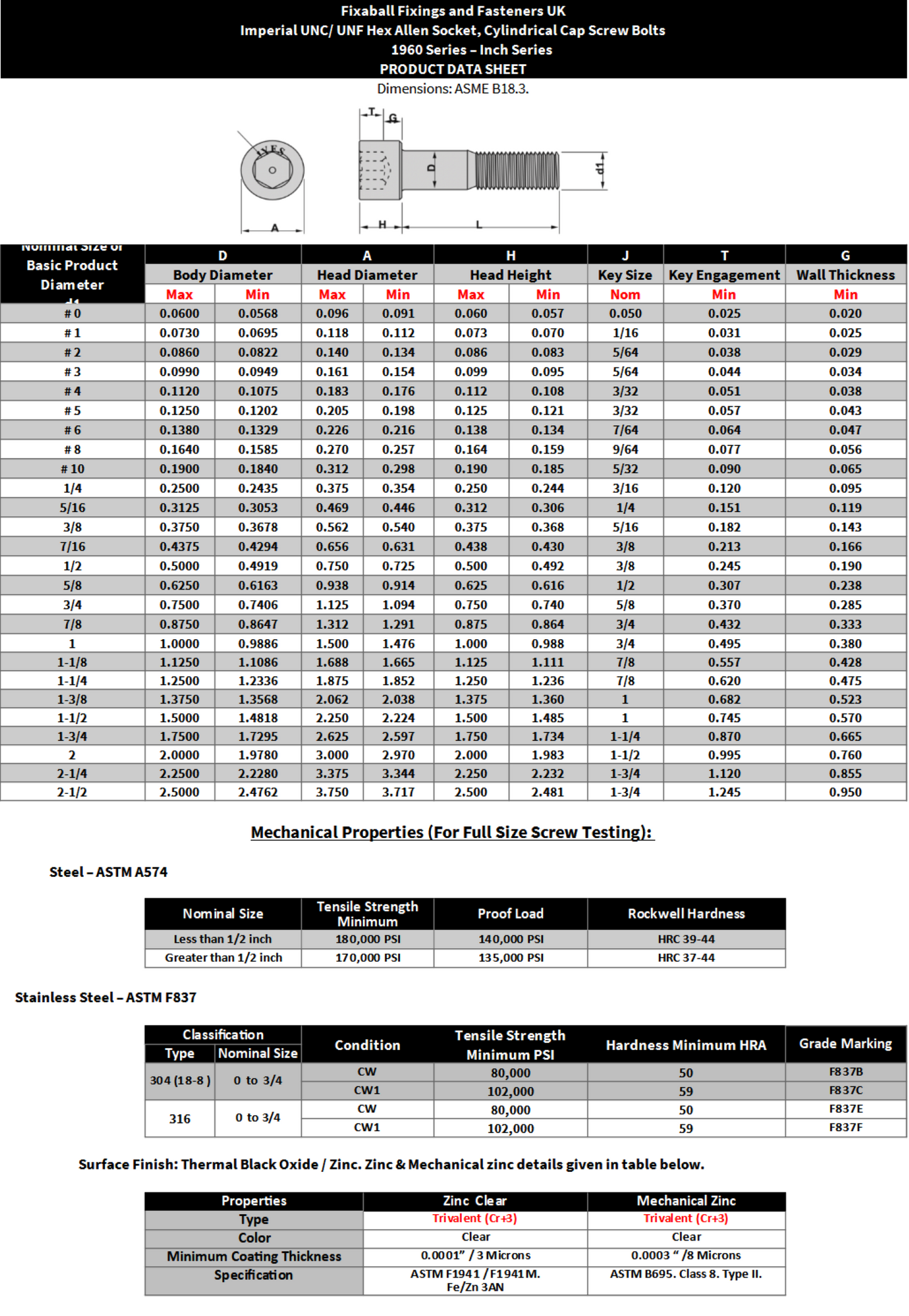

UNC/ UNF Socket Cap Screws Dimensions

Conforming to ASME/ ANSI B18.3 1960 Series

All measurements in Inches



Pitch TPI

Head Diameter

Shank Diameter

Head Height

Hex Key Size

Diameter

UNF

Max

Max

Max

Nom

No. 10

32

0.31

0.19

0.19

5/32



UNIFIED THREAD STANDARDS

The basic American standards for fastening screw threads as agreed upon by standard bodies of Canada, the United Kingdom, and the United States. They are a complete and integrated system of threads for fastening purposes. Their outstanding characteristic is general interchangeability of threads achieved through the standardization of thread form, diameter-pitch combinations, and limits of size

Unified National (UN) thread form with a rounded root contour, applies only to external threads. (The UN thread form has a flat, or optionally, a rounded root contour.) The majority of fasteners with a Unified thread form (UNC UNF) have a rounded root contour i.e. are UNR threads.

Unified National Fine (UNF) is a thread form with a 60 degree flank angle rounded roots and flat crests. For a given diameter it has a smaller thread pitch than an equivalent diameter UNC thread.

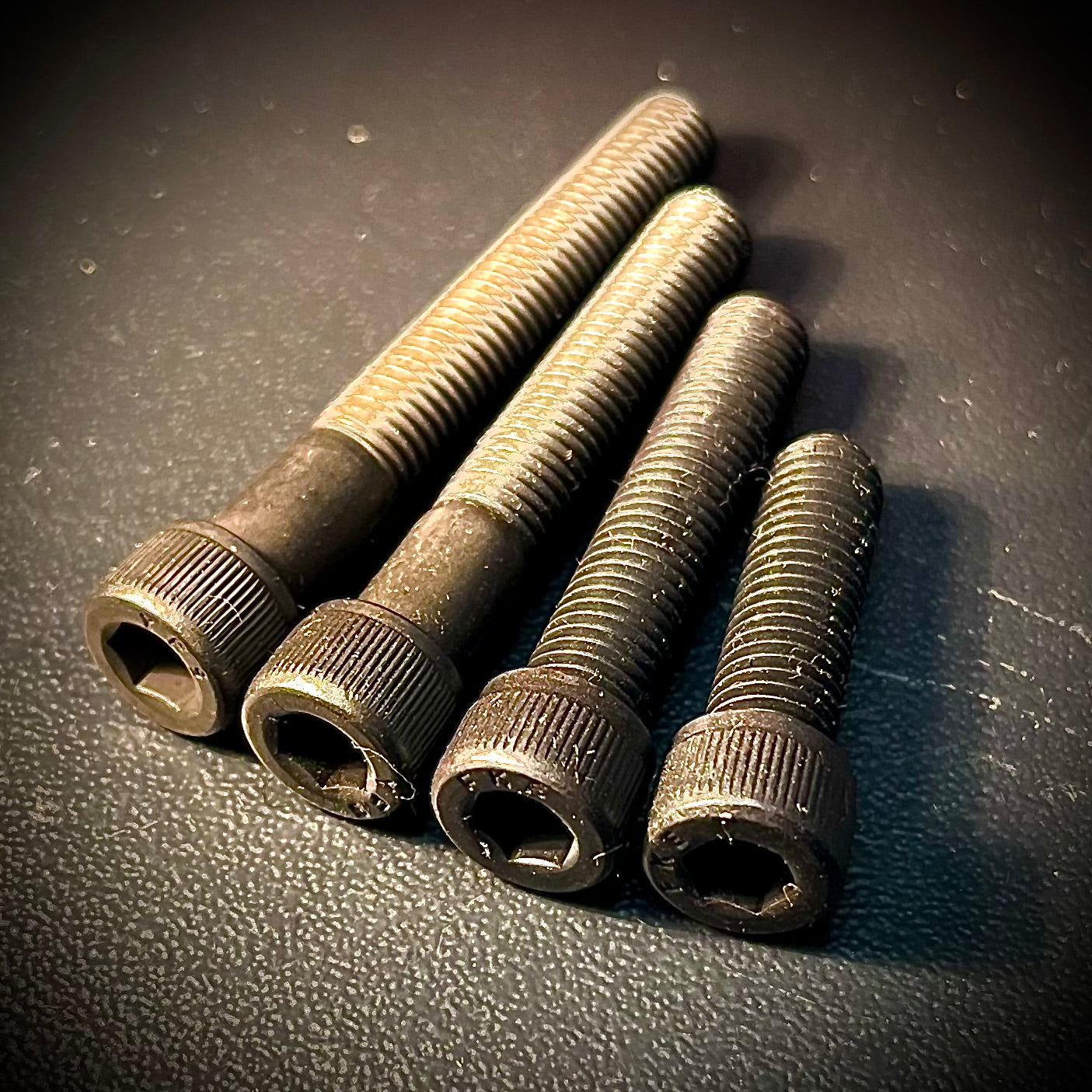

Image is for illustrative purposes only.
