UNF - Countersunk Socket

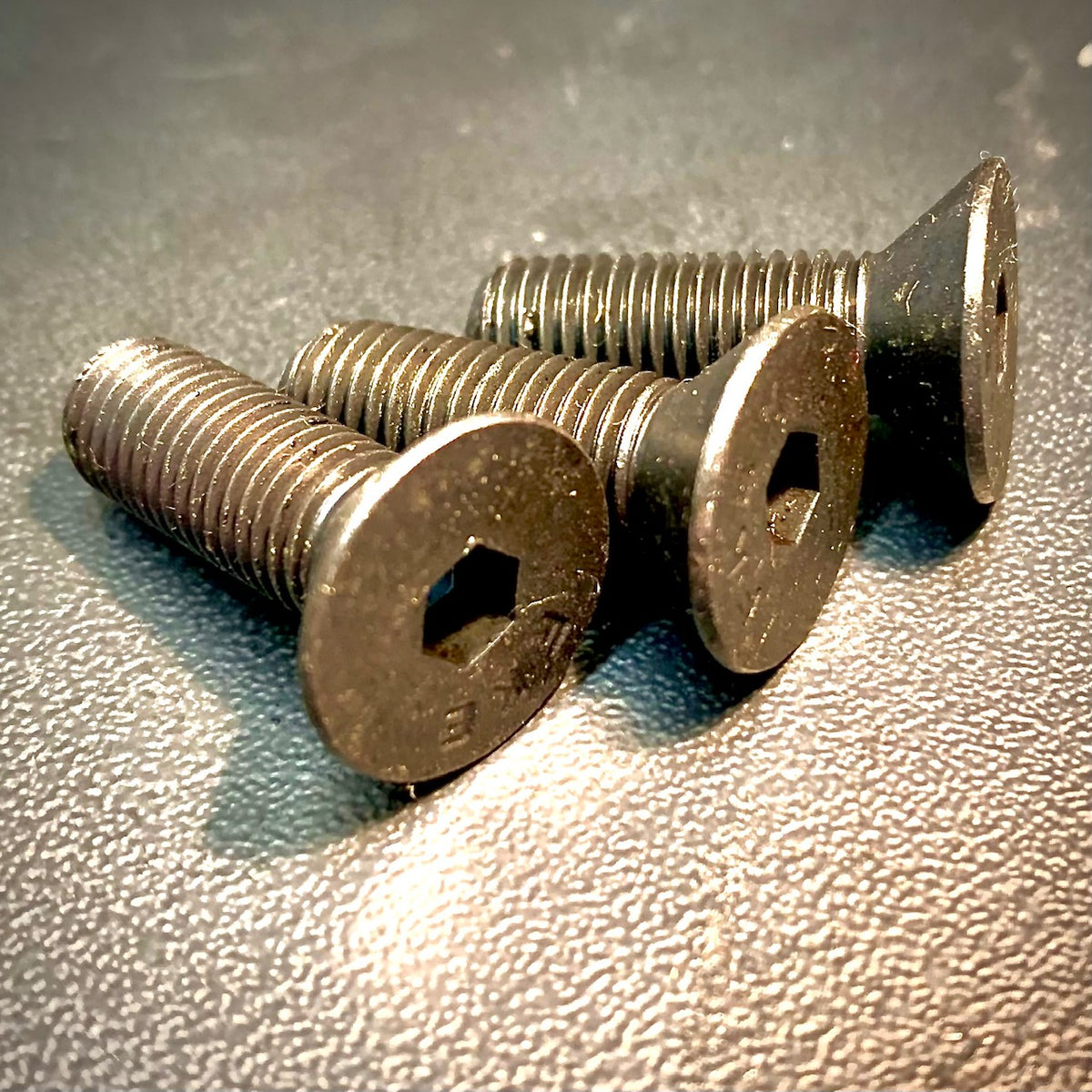

UNF 5/8" Socket Screw Countersunk High Tensile 10.9 DIN7991

UNF 5/8" Socket Screw Countersunk High Tensile 10.9 DIN7991

Regular price £7.95 GBP
Regular price Sale price £7.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No. of Items in Pack
Length (inches)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

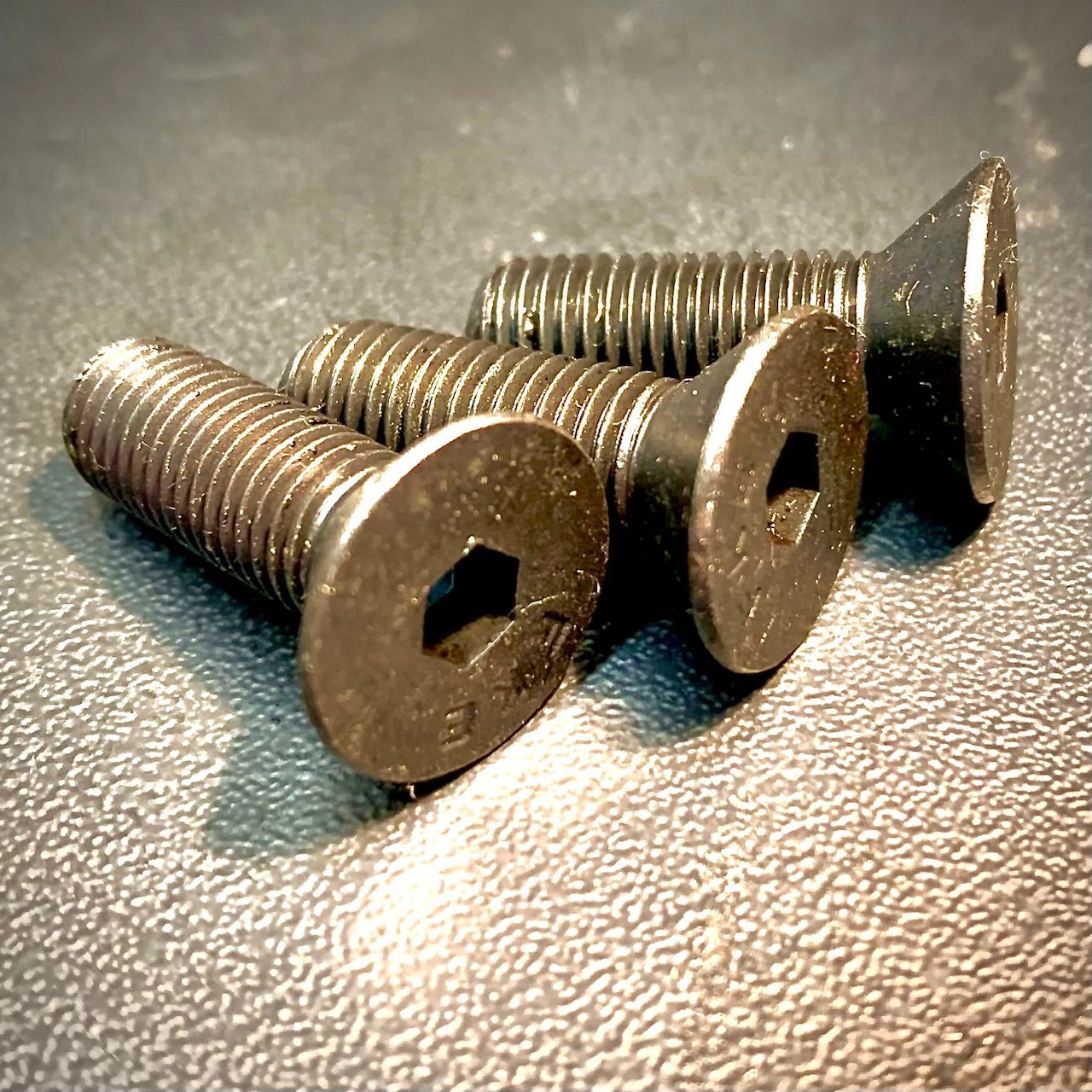

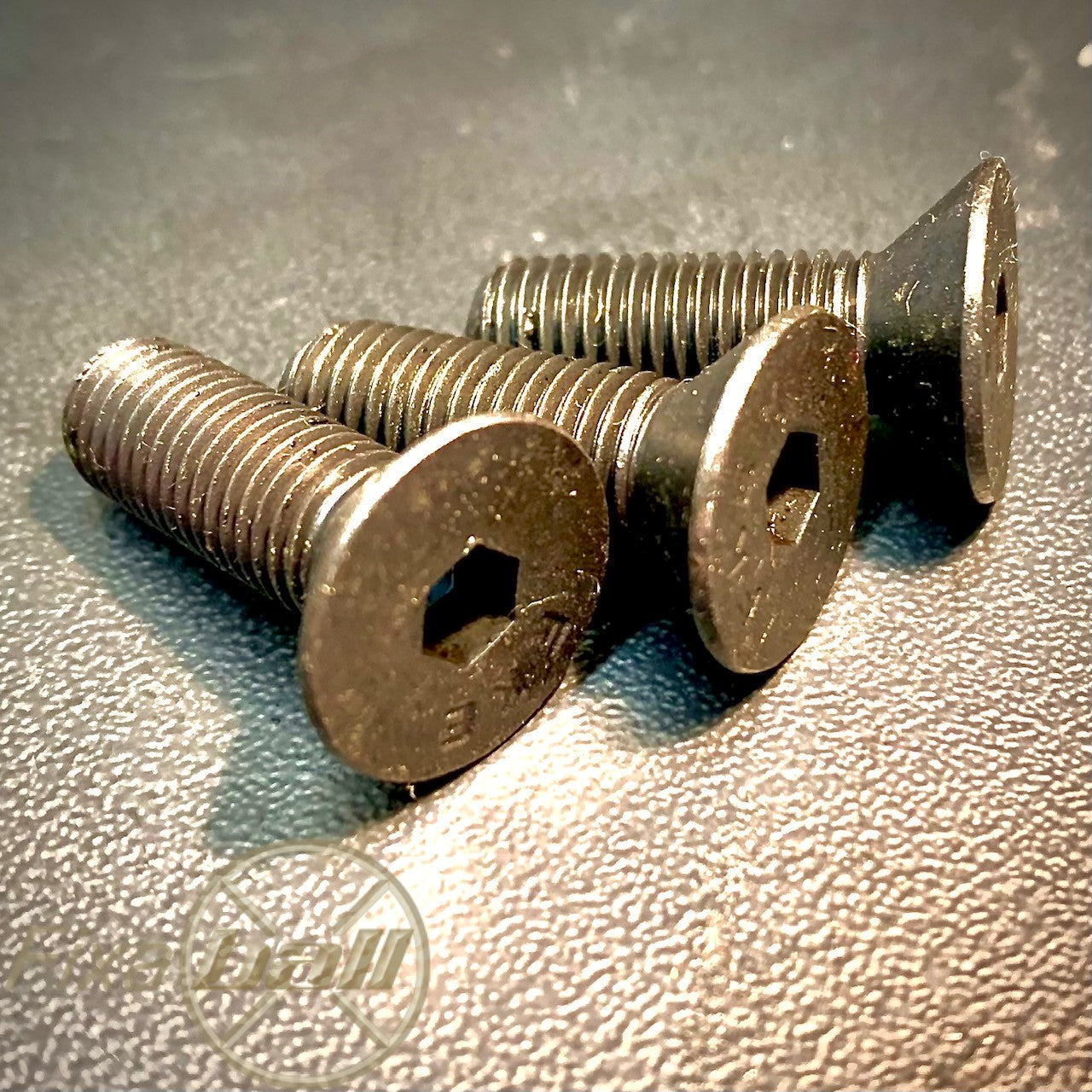

UNF 5/8" (18 T.P.I.), Fine Pitch, High Tensile (Grade 10.9), Self Colour. Allen (hex) Socket, Countersunk Head, Allen Screw/ Bolt, ISO 10642, B18.3, BS 2470

Fixaball sells all lengths of 5/8", UNF, countersunk socket screw bolts.

Hex/ Allen Socket Countersunk Screw/ Bolts

Countersunk fasteners are designed to fit flush on the connecting surface when fully tightened. They are tightened and loosened with an allen/ hex key drive.

How to measure a countersunk fixing/ fastener

The length of a countersunk fixing/ fastener is always from tip to the top.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.



UNF, 5/8" Allen Socket, Countersunk Screw/ Bolt lengths at Fixaball:

 FT - Fully Threaded

PT - Partially Threaded

5/8"-18x1",(FT) SOCKET COUNTERSUNK HEAD SCREWS UNF ALLOY SELF COLOUR
5/8"-18x1 1/4",(FT) SOCKET COUNTERSUNK HEAD SCREWS UNF ALLOY SELF COLOUR
5/8"-18x1 1/2",(FT) SOCKET COUNTERSUNK HEAD SCREWS UNF ALLOY SELF COLOUR
5/8"-18x1 3/4",(FT) SOCKET COUNTERSUNK HEAD SCREWS UNF ALLOY SELF COLOUR
5/8"-18x2",(FT) SOCKET COUNTERSUNK HEAD SCREWS UNF ALLOY SELF COLOUR
5/8"-18x2 1/4",(FT) SOCKET COUNTERSUNK HEAD SCREWS UNF ALLOY SELF COLOUR
5/8"-18x2 1/2",(FT) SOCKET COUNTERSUNK HEAD SCREWS UNF ALLOY SELF COLOUR
5/8"-18x3",(FT) SOCKET COUNTERSUNK HEAD SCREWS UNF ALLOY SELF COLOUR



High Tensile – 10.9 Grade.

Available Finish: Plain/ Black/ Self Colour

Fixaball – Specialist Fixings and Fasteners

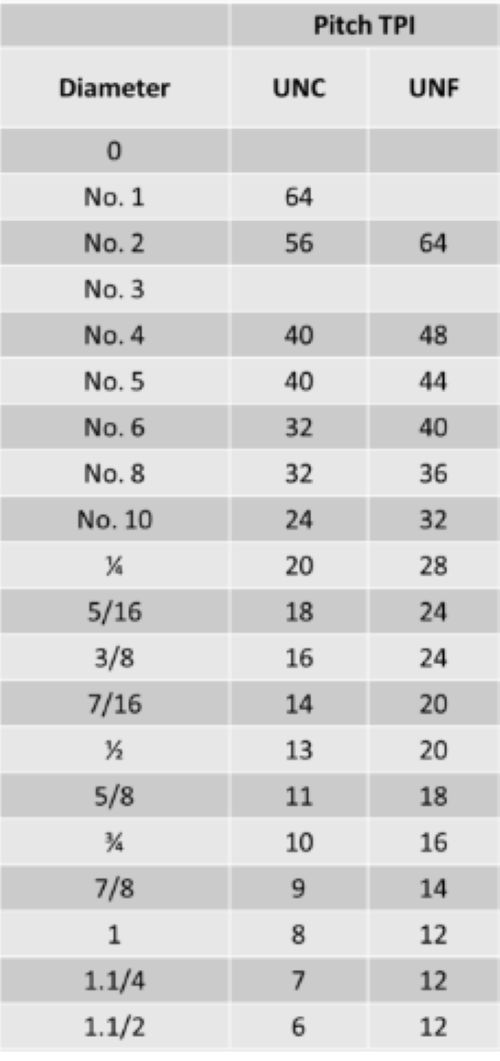

UNC/ UNF Countersunk Socket Screw/ Bolt Diameters and T.P.I.'s

Conforming to ISO 10642, B18.3, BS 2470



Thread Pitch (Threads Per Inch/ T.P.I.)

Diameter

UNC

UNF

No. 4

40

48

No. 5

40

44

No. 6

32

40

No. 8

32

36

No. 10

24

32

¼

20

28

5/16

18

24

3/8

16

24

7/16

14

20

½

13

20

5/8

11

18

¾

10

16

7/8

9

14

1

8

12

1.1/4

7

12

1.1/2

6

12



Self Colour, High Tensile 10.9 Material Properties

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel (10.9)

Self-Colour (black)

Low, without further surface treatment

· No exposure to moisture

· Often Greased/ Oiled



UNIFIED THREAD STANDARDS

The basic American standards for fastening screw threads as agreed upon by standard bodies of Canada, the United Kingdom, and the United States. They are a complete and integrated system of threads for fastening purposes. Their outstanding characteristic is general interchangeability of threads achieved through the standardization of thread form, diameter-pitch combinations, and limits of size

Unified National (UN) thread form with a rounded root contour, applies only to external threads. (The UN thread form has a flat, or optionally, a rounded root contour.) The majority of fasteners with a Unified thread form (UNC UNF) have a rounded root contour i.e. are UNR threads.

Unified National Fine (UNF) is a thread form with a 60 degree flank angle rounded roots and flat crests. For a given diameter it has a smaller thread pitch than an equivalent diameter UNC thread.



Image is for illustrative purposes only.
