UNF, Hex-Bolt

UNF 7/16" Hex Bolt and Set Screw A2 304 Stainless Steel DIN931

UNF 7/16" Hex Bolt and Set Screw A2 304 Stainless Steel DIN931

Regular price £4.98 GBP
Regular price Sale price £4.98 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No. of Items in Pack
Length (inches)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

UNF 7/16", Hex Bolts and Hex Sets in A2/ 304 Stainless Steel, DIN 931

Fixaball sells all lengths of A2/ 304 Stainless Steel, 7/16" UNF Bolts (unthreaded shoulder) and Hex Set Screws (fully threaded).

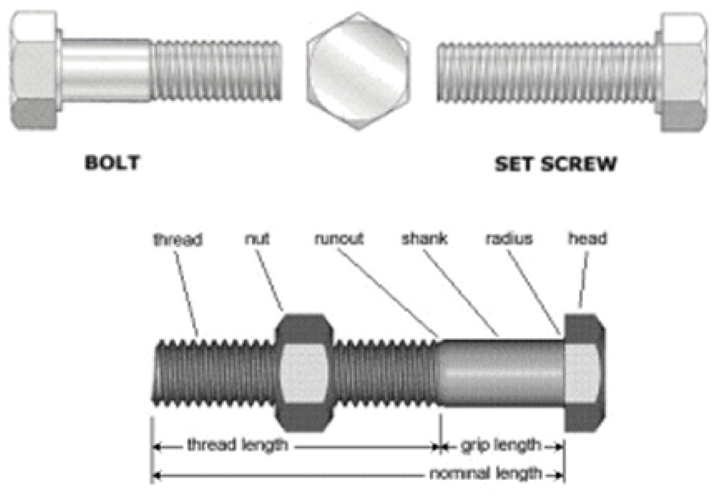

Bolt vs Set

A Hex Bolt is the term used for a partially threaded fastener, with a hexagon head; designed to be used with a nut and washer. A Hex Set (Screw Bolt) is the same, except it is fully threaded.



Orders placed before 2pm are dispatched same day (Mon-Fri) and free shipping is Royal Mail, 2nd Class (2-5 days). Postage upgrades available at checkout.

Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.

If the size you need isn't shown, please make inquires.



A2/ 304 Stainless Steel, UNF, 7/16", Hex Bolts and Hex Sets Lengths available:

(FT - Fully Threaded, PT - Partially Threaded)

7/16"-20x1 1/4",(FT) UNF HEXAGON SET SCREW UNF STAINLESS A2
7/16"-20x1 1/2",(FT) UNF HEXAGON SET SCREW UNF STAINLESS A2
7/16"-20x2",(PT) UNF HEXAGON BOLT UNF STAINLESS A2
*7/16"-20x2 3/4",(PT) UNF HEXAGON BOLT UNF STAINLESS A2
7/16"-20x3",(PT) UNF HEXAGON BOLT UNF STAINLESS A2
*7/16"-20x3 1/4",(PT) UNF HEXAGON BOLT UNF STAINLESS A2
*7/16"-20x3 1/2",(PT) UNF HEXAGON BOLT UNF STAINLESS A2



*Request lengths

A2/ 304 Stainless Steel

A2, otherwise known as 304 Stainless Steel is the regular stainless standard. It can resist intermittent weathering without corroding and loosing it's metallic finish.



Bolt vs Screw

A screw screws into something, a bolt joins several things together from both sides of materials joined.  Both a screw and bolt's length is measured from the underside of the head to the end of the fastener.

Table to show the different listing sizes and if they are hex-sets or hex-bolts



Fixaball – Specialists in Fixings and Fasteners

UNC 7/16” Sizes (20 TPI)

1.1/4"

Fully Threaded

1.1/2"

Fully Threaded

2"

Partially Threaded

3”

Partially Threaded



UNIFIED THREAD STANDARDS

Thread standards agreed upon by standard bodies of Canada, the United Kingdom, and the United States.

Unified National (UN) thread form with a rounded root contour, applies only to external threads. (The UN thread form has a flat, or optionally, a rounded root contour.) The majority of fasteners with a Unified thread form (UNC, UNF) have a rounded root contour i.e. are UNR threads.

Unified National Fine (UNF) is a thread form with a 60 degree flank angle rounded roots and flat crests. For a given diameter it has a smaller thread pitch than an equivalent diameter UNC thread.
