Galvanised - Anchor Studs

ETA Approved Chemical Anchor Resin Studs Galvanised Steel JCP

ETA Approved Chemical Anchor Resin Studs Galvanised Steel JCP

Ordinarie pris £4.44 GBP
Ordinarie pris Försäljningspris £4.44 GBP
Rea Slutsåld
Skatter ingår. Frakt beräknas i kassan.
No. of Items in Pack
Sizes

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

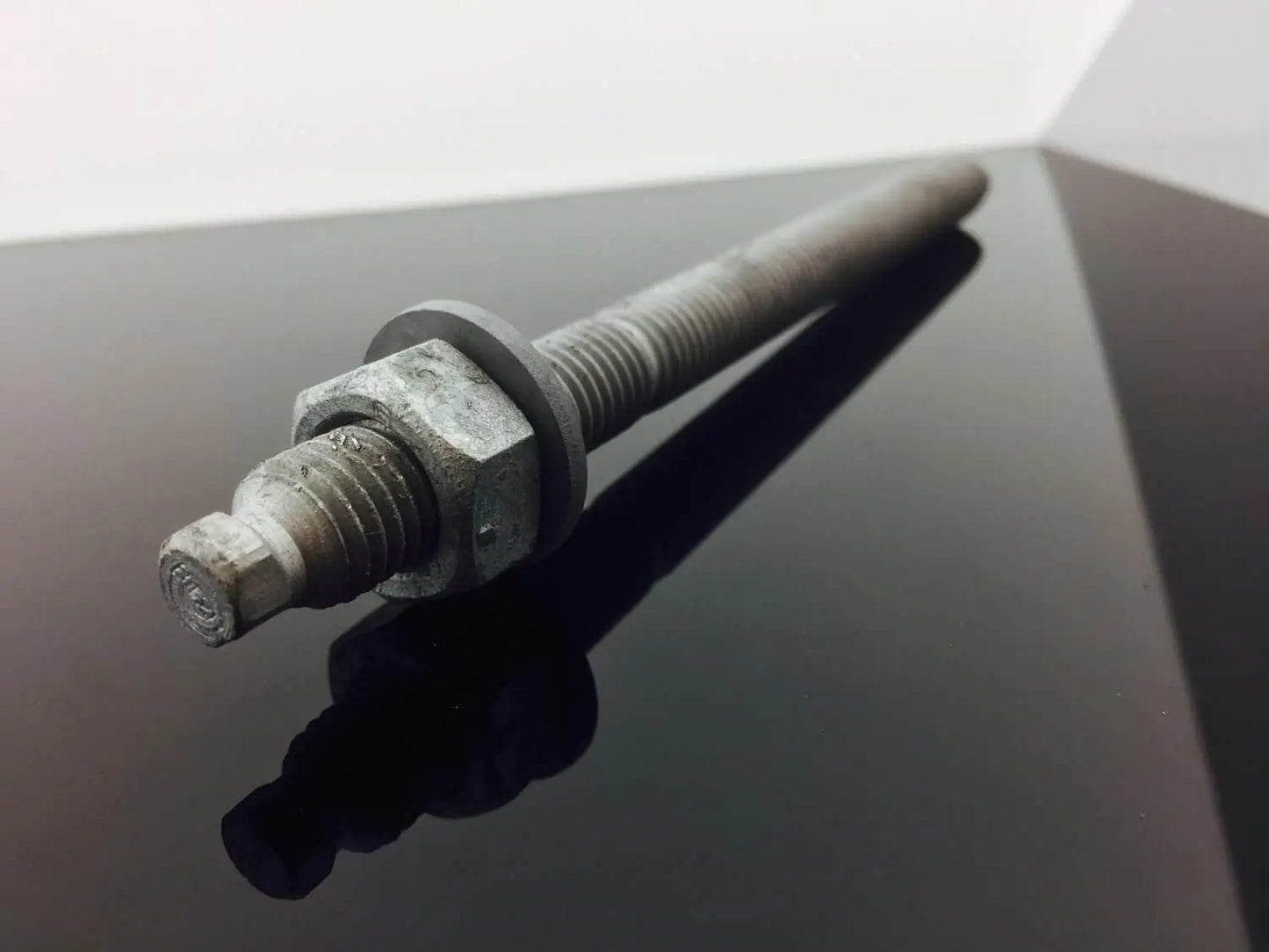

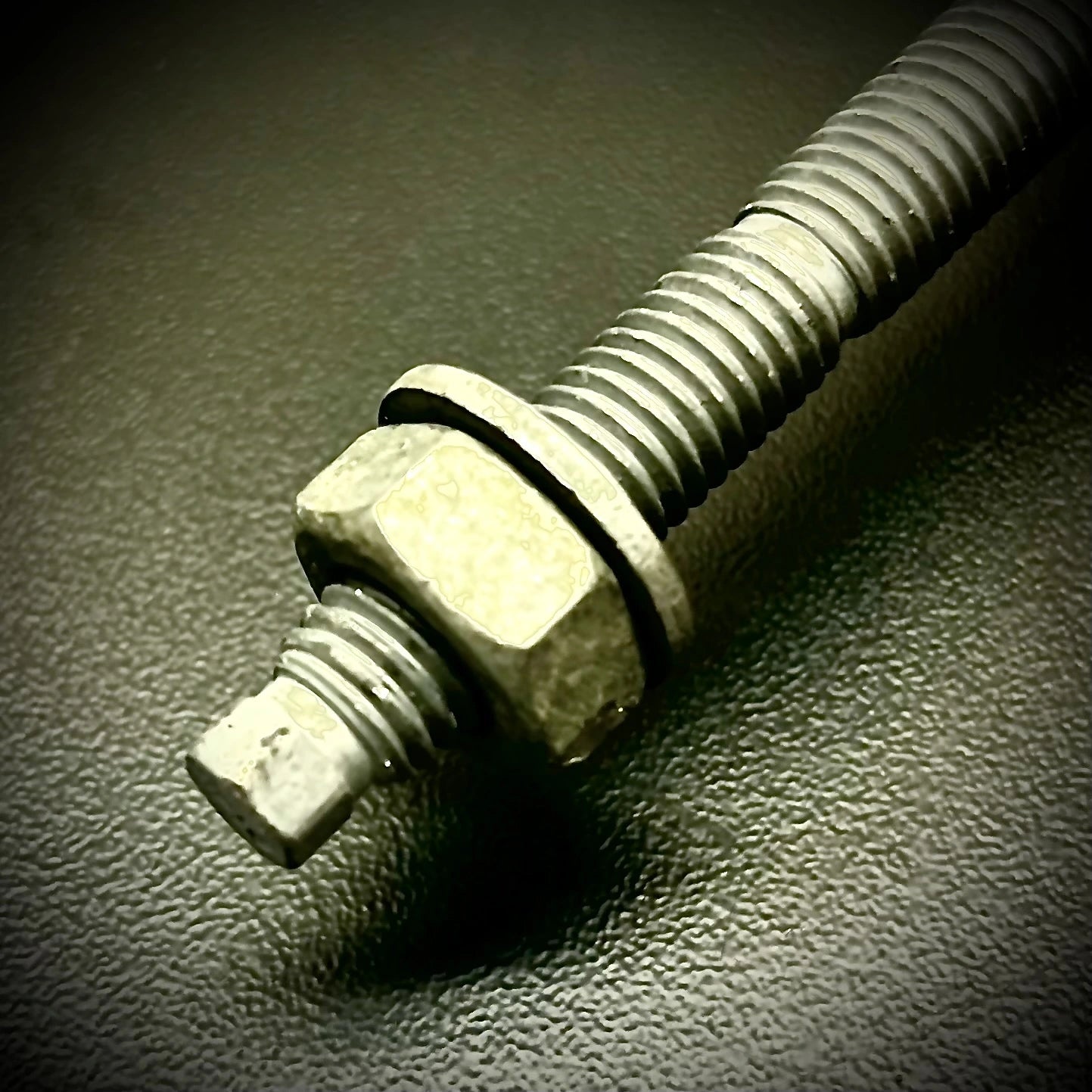

C. E. ETA Approved M8, M10, M12, M16, M20, M24 J.C.P, 5.8 Grade Galvanised Steel, Chemical Anchor Studs, Chisel Tip

Fixaball sells diameters and lengths of ETA Approved, 5.8 Grade Steel, Galvanised Steel, JCP chemical anchor studs.

Installation Guide

  • Check that the substrate you are fixing to is stable
  • Use the chart to find the correct drill bit to use.
  • Mark out the hole locations
  • Drill holes a minimum depth of the anchor length - maximum fixture thickness + 10mm
  • Drill the hole square
  • Clean the hole with the correct sized brush and blow out the hole for dust.
  • Use a suitable chemical resin
  • Gently turn the stud as you depress it down wards (sit around 10mm from the bottom of the hole).

Missing installation details will impair the performance of the stud, potentially making it unsafe.

The anchor rod is approved for use both with capsules and with injection resin which guarantees a maximum flexibility of applications:

  • Guard rails
  • Silo installations
  • Staircases
  • Steel consoles
  • Masts
  • Skirting protection
  • Anchoring heavy machines
  • Façades
  • Steelwork constructions

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose your 'No. of Items in Pack', 'Size' and 'Quantity' of packs from the drop down menus.



J-Fix Studs - ETA Approved High Performance Galvanised, 5.8 Grade Steel Fixings Sizes Available

J-Fix Studs - Grade 5.8 Hot Dipped Galvanised Anchor Hole diameter Anchor Length
8mm 10 110mm
10mm 12 130mm
12mm 14 160mm
16mm 18 190mm
20mm 25 260mm
24mm 28 300mm



  A table to show important technical information for these chemical anchor studs.

J-Fix Studs - Hot Dipped Galvanised

Part No.

Sizes

(mm)

Anchor Hole diameter

Maximum Fixture Thickness

Anchor Length

RRP Per 100

Our Price

JSTUD08110G

 8 x 110

10

18mm

110mm

£194.58

59.13

JSTUD10130G

10 x 130

12

25mm

130mm

£246.78

74.51

JSTUD12160G

12 x 160

14

34mm

160mm

£293.65

88.43

JSTUD16190G

16 x 190

18

45mm

190mm

£445.13

133.93

JSTUD20260G

20 x 260

25

55mm

260mm

£904.30

268.73

JSTUD24300G

24 x 300

28

67mm

300mm

£1,398.68

414.98



Image is for illustrative purposes only.
