Metric - Cap Head

M4 Socket Cap Screw High Tensile 12.9 BZP DIN 912

M4 Socket Cap Screw High Tensile 12.9 BZP DIN 912

Ordinarie pris £2.67 GBP
Ordinarie pris Försäljningspris £2.67 GBP
Rea Slutsåld
Skatter ingår. Frakt beräknas i kassan.
No. of Items in Pack
Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M4, 4mm Diameter x 0.7mm Pitch, Standard Coarse Thread, Cap Head, Socket Screw/ Allen Bolt, High Tensile (12.9), Zinc Plated, DIN 912

Fixaball sells all lengths of M4, zinc, socket cap screw/ bolts.

Descrcription: M4 socket cap screw/ bolts.
Material:
High Tensile Steel Grade 12.9.
Coating/ Finish:
Bright Zinc Plated.
Thread:
Threads are metric coarse M4 x 0.7mm pitch.
Head diameter:
7.2mm.
Head height:
3.8mm.
Allen key size:
3mm.
Standard:
DIN 912.
Note:
Bolt lengths do not include the head.

What is a socket cap screw/ bolt?

The, ‘Socket Cap Screw/ Allen Bolt,’ term is used to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of packs, selection from the drop down menus.



M4 x 0.7mm Pitch (Standard Coarse Thread), Cap Head, Bolt/ Socket Screw/ Allen Bolt, High Tensile (12.9), Zinc Plated, lengths available:

FT - Fully Threaded

PT - Partially Threaded

M4-0.70x10 MM,(FT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x12 MM,(FT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x14 MM,(FT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x15 MM,(FT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x16 MM,(FT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x20 MM,(FT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x30 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x25 MM,(FT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x35 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x40 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x45 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x50 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x55 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x60 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x65 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x70 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3
M4-0.70x75 MM,(PT) SOCKET HEAD CAP SCREWS 12.9 ISO 4762 / DIN 912 COARSE ZINC-BAKE CR+3



FIXABALL – Specialist Fixings and Fasteners Suppliers
Hexagon/ Allen Key Sizes
METRIC – Allen Socket, Cap Head, Screw Bolts

Allen Socket, Cap Head Screw Size Diameter

Allen/ Hex/ Hexagon Key Required to tighten and loosen

M4

3





Material: High Tensile (12.9 Grade) -Zinc Plated

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel/ ZINC (Grade 12.9)

Shiny Metallic

Resistant to light moisture, occasionally (not for external use)

Low moisture environments



Grade 12.9 Steel has a higher carbon content than your regular 8.8 high tensile steel and is therefore better for hardness and rigidity. Zinc provides a shiny metallic finish and some resistance to weathering.

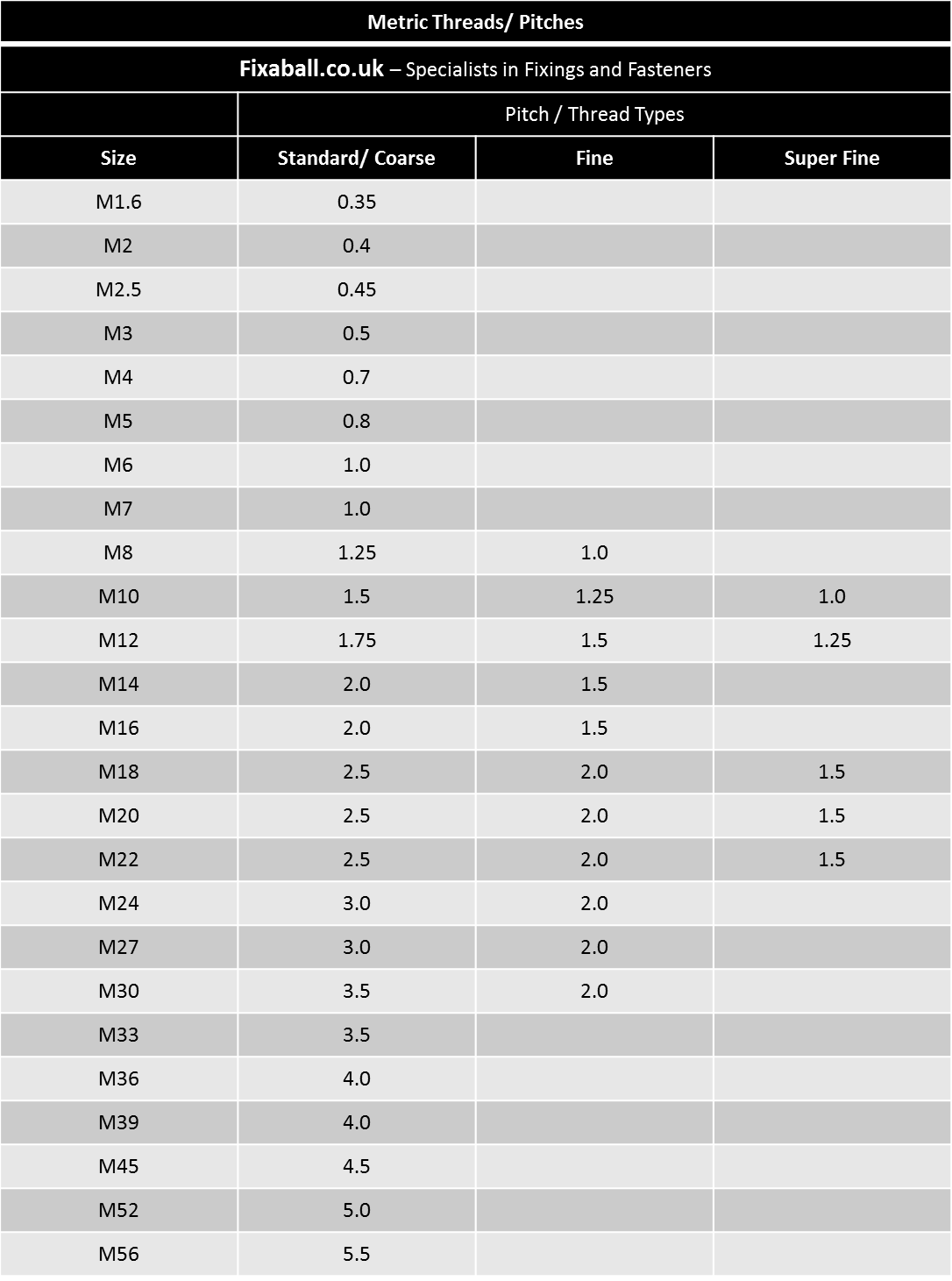

Metric Coarse threads are in millimetre (mm) units and were developed to simplify the imperial systems. A coarse thread has less helical coils per mm and is used for heavier/ higher torque loads. Coarse threads are the, 'normal', most common versions.



 Image is for illustrative purposes only.
