Drop-in Anchor

M6 Drop In Masonry Concrete Anchor Zinc

M6 Drop In Masonry Concrete Anchor Zinc

Ordinarie pris £2.44 GBP
Ordinarie pris Försäljningspris £2.44 GBP
Rea Slutsåld
Skatter ingår. Frakt beräknas i kassan.
No. of Items in Pack

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

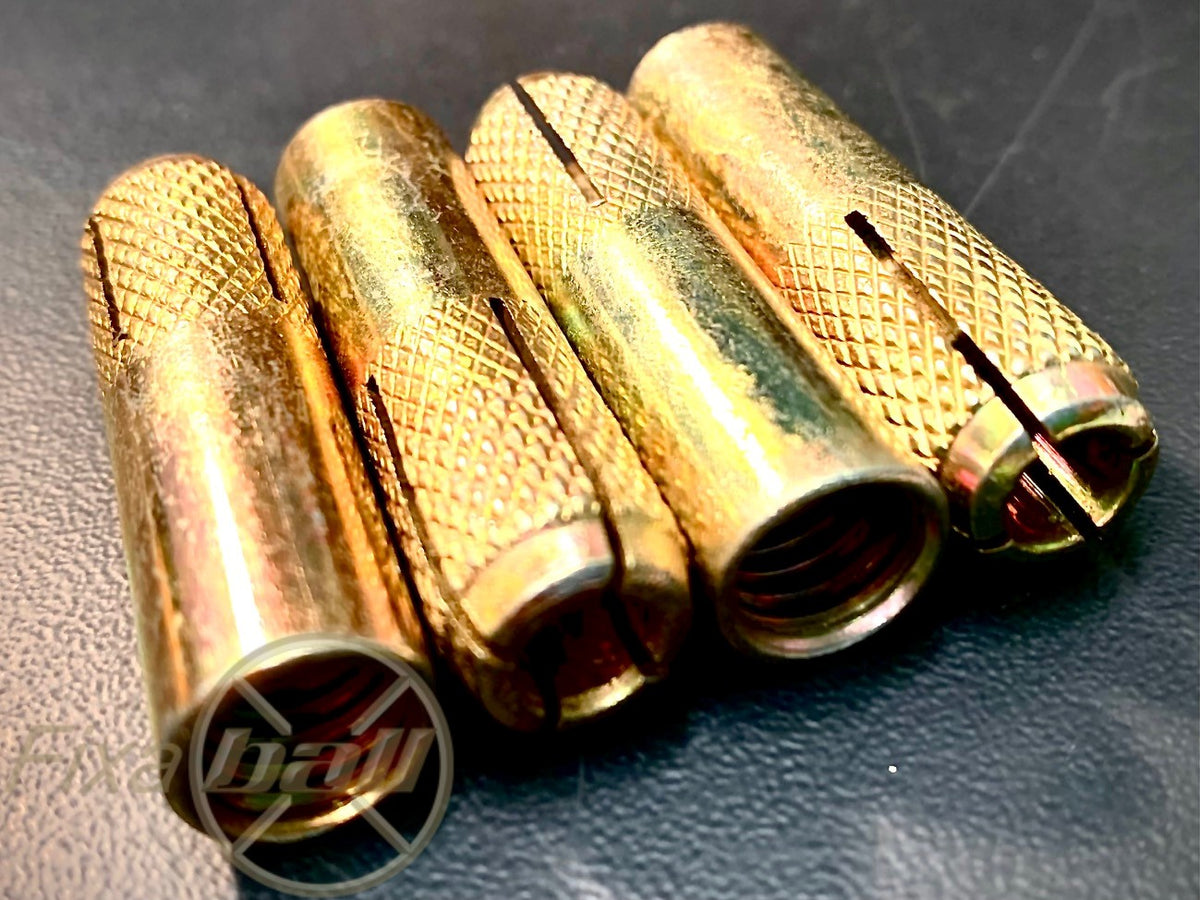

M6, 6mm Internal Thread, Drop In Anchor, Zinc - Masonry, Brick, Concrete Expansion Anchor

Fixaball sells M6, zinc plated drop in, masonry anchors.

M6 Drop In Anchor

A drop in, masonry anchor is an expansion anchor for fixing materials to all types of masonry, concrete, brick and non-porous stone. An internally threaded socket anchor for use with bolts or threaded rod of any length. Full expansion can be guaranteed by using the correct shouldered setting punch. Suitable for use in solid concrete.

M6 Drop In Anchor Applications:

  • Light to heavy-duty into solid concrete.
  • Mechanical and electrical services
  • Suspension systems (ceilings)
  • Cable Trays
  • Signs
  • Hand rails

M6 Drop In Anchor Advantages:

  • Flush fitting with no protrusion when not in use
  • Shallow embedment, hence less chance of drilling into rebar, and faster drilling
  • Removal of fixture leaves anchor undisturbed
  • Setting tool stamp marks to indicate complete expansion
  • Visual expansion check with setting tool
  • Permanent anchorage point in solid concrete, brick or masonry
  • Can be used with all types of bolts, screws and studs

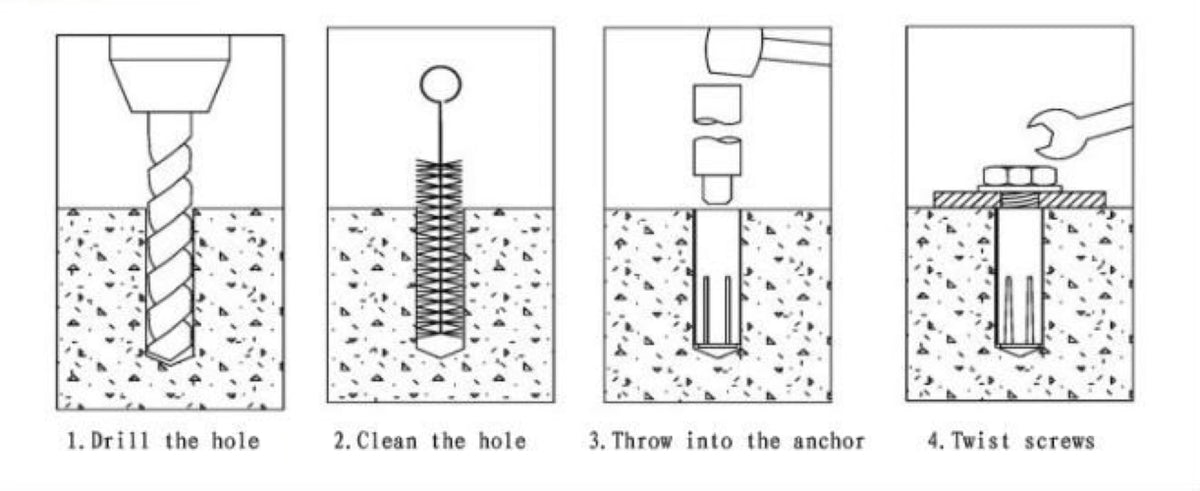

M6 Drop In Anchor Installation:

  1. Drill a hole in the concrete using a hammer drill and a carbide tipped masonry drill bit, matching the bit size with the outside diameter of the drop-in anchor being used. Make sure the hole depth exceeds the minimum embedment (around 5%)
  2. Drill the correct diameter hole and depth.
  3. Clear the hole of all debris with a brush and blow out pump.
  4. Push the anchor into the hole until it is flush with the surface of the concrete.
  5. Insert the relevant setting tool of the same diameter as the anchor until it makes contact with the cone. Use a hammer to drive the setting tool into the anchor – stop hammering when the expander shoulder rests against the anchor or when it is blocked (in hard concrete).
  6. Tighten to the recommended torque using a torque wrench.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.  Postage upgrades available at checkout.

Please make your 'no. of items in pack''length', and 'quantity', of packs selection from the drop down menus.



Internal Thread Diameter
Anchor Hole Size
Anchor Length
M6
8mm
25mm



     Bolt Length:

    When the drop-in anchor is set flush with the base material, the minimum bolt length required equals the internal thread length of the anchor, plus the thickness of the material to be fastened, plus the thickness of any washers to be used.

    If the anchor is set deeper into the concrete, adjust the length accordingly, by adding the additional depth to the minimum anchor length.



    Anchor Spacing:

    The forces on a Drop-In Anchor are transferred to the material in which it is installed. If the anchors are installed too close together, it can cause an interaction of the forces, thus reducing the holding power of the anchors. Minimum spacing between anchors and minimum edge distances for the concrete drop-in anchor are as follows:



    Tables: Shows important drop-in masonry anchor sizes/ measurements

    Fixaball Fixings and Fasteners

    Drop in Anchors - Installation Dimensions

    Thread Diameter

    Anchor Hole Size

    Anchor Minimum Length

    Minimum Hole Depth

    Internal Thread Length

    mm

    mm

    mm

    mm

    mm

    M6

    8

    25

    25

    10



    All Measurements in mm

    Screw Diameter

    Masonry Drill Diameter

    Hole Depth

    Minimum Screw Embedment

    M6

    8

    26

    11



    All specifications are true with correct installation



    Image is for illustrative purposes only.
